Folding Machines

Automatic edge folding machine ideal for different types of processing operations.

• Equipped with different working modes: automatic and manual
• Can fold both sides, upper side only or lower side only
• Mould setup is quick and easy to perform
• The upper mould is heated with adjustable temperature control

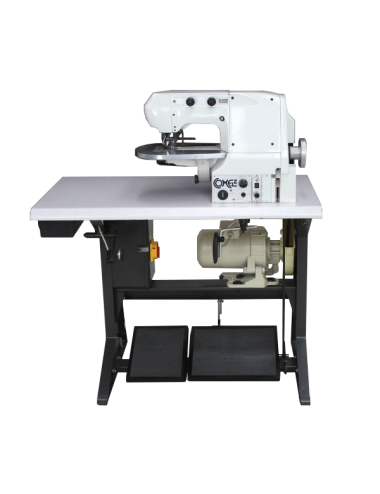

Thermo-folding and gluing machine for uppers, leather goods and garments.

Adjustable feeding system and folding width setting through control lever.

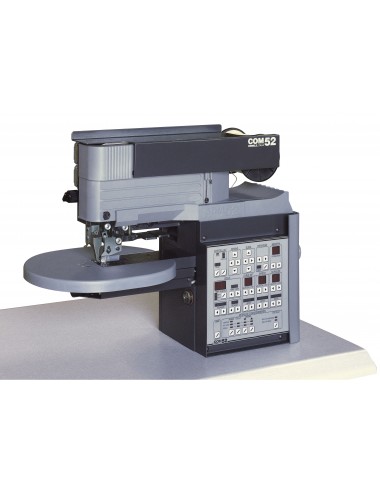

Computerized thermo-folding and gluing machine fully programmable through the control console, with storage capacity for up to 99 processing programs and integrated brushless DC motor.

Possibility to adjust the position of presser foot, guide, folder, photocells, feeding system and glue dispensing.

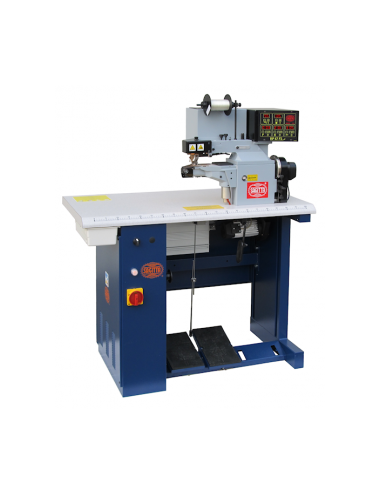

Thermo-folding and gluing machine with function control through photo-sensors, complete with table and Efka brushless motor with automatic positioning.

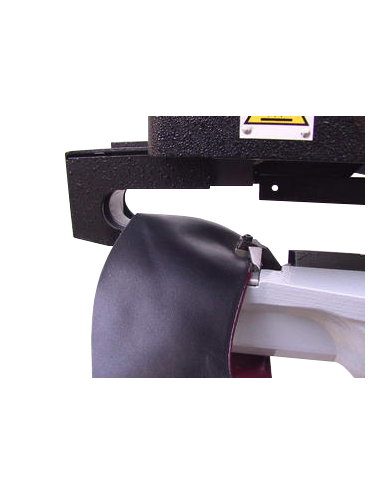

The RP 67 TF3B is equipped with electronic automatic control of the following functions:

• Adhesive dispensing with programmable delay
• Feed pitch variation on external curves with programmable delay according to operating speed
• Feed pitch variation on internal curves with programmable delay according to operating speed and automatic cutting operation with adjustable spacing between consecutive cuts
• Easy selection of the most suitable photo-sensors according to the geometry of the component to be folded

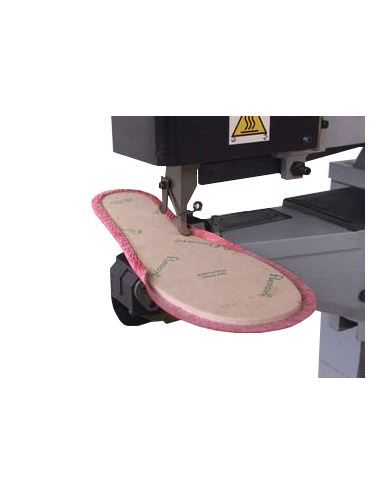

Thermo-folding and gluing machine for insoles, complete with table and Efka motor with automatic positioning.

The machine is equipped with a height-adjustable presser foot lever and a presser foot that slides within its support, allowing easy processing of anatomical insoles when used with additional optional accessories.

Computer-controlled thermo-folding and gluing machine complete with table and self-ventilated AC motor with automatic positioning.

The RP NOVA V4 features photoelectric sensor-controlled functions. The machine adapts to the individual operator's working method by learning commands and movements during the production of the first piece, storing them in memory and then repeating them automatically, leaving the operator responsible only for guiding the workpiece.

It controls the adhesive flow with exceptional consistency and distributes it inside the fold in the form of fine adhesive filaments.

At the end of each working cycle, the machine stops with the hammer open and activates the glue suction system, preventing adhesive from soiling the upper.

The OMAC 600R is an electro-pneumatic linear folding machine for cold folding operations.

It is designed to perform cold folding on a wide range of leather goods accessories, including wallets, cheque holders, credit card holders and handbags.

It is also used in the production of diaries, menus, desk accessories, sample folders, and leather or synthetic leather panels.

Folding width adjustable from 5 to 15 mm.
