Backpart Moulding Machines

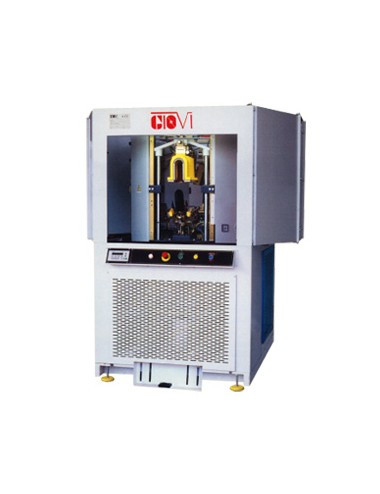

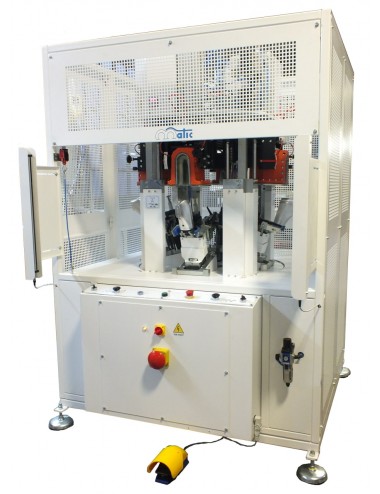

Hot machine for counter reactivation and backpart moulding on the upper.

The upper locking system is pedal-operated, while the hot cushion descent is controlled by two-hand operation.

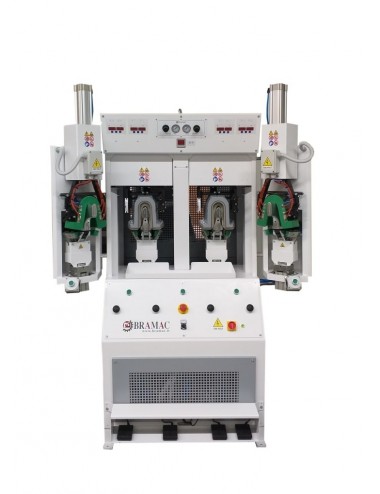

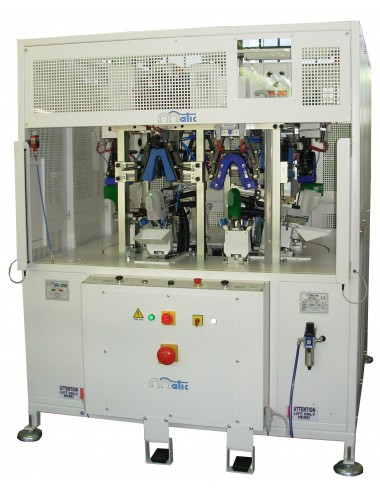

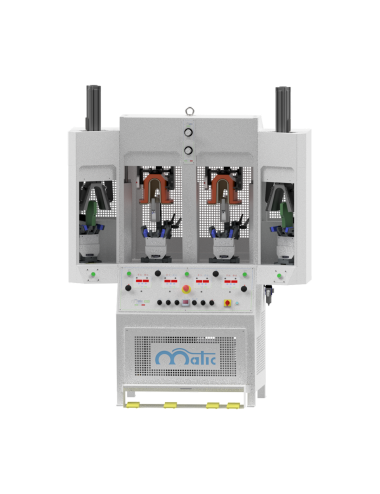

Backpart moulding machine with 2 hot stations and 2 cold stations, equipped with 4 inflatable pads with vacuum suction system and pincer units also on the reactivation stations.

• Control panel for programming the machine cycle and the temperatures of the hot and cold moulds
• Complete adjustment of moulds, shaping pads and upper pulling pincers
• Optical projectors for correct upper positioning
• Possibility to manufacture tooling and moulds based on the customer’s last sample

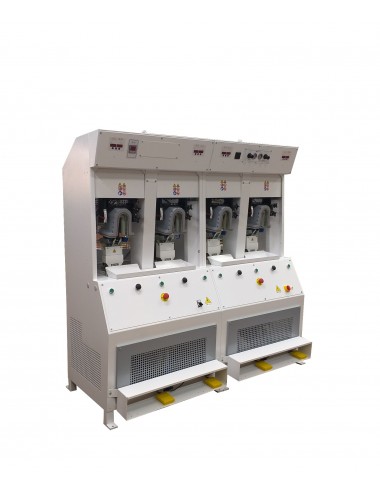

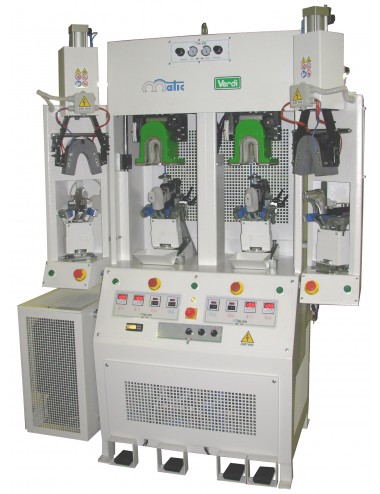

Backpart moulding machine with 2 hot stations and 2 cold stations, equipped with cushions, inflatable pads with vacuum suction system and pincer units also on the reactivation stations.

• Control panel for programming the machine cycle and the temperatures of the hot and cold moulds
• Complete adjustment of moulds, shaping pads and upper pulling pincers
• Optical projectors for correct upper positioning
• Possibility to manufacture tooling and moulds based on the customer’s last sample

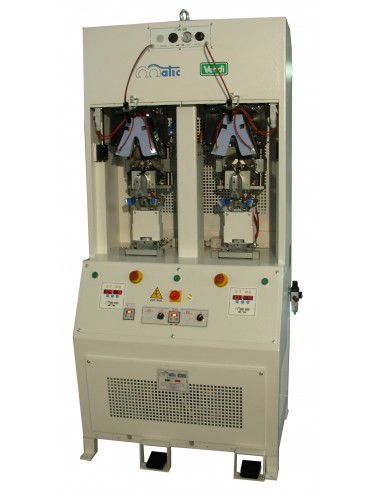

Macchina garbasperoni "Ideal" a 2 stazioni calde dotata di una coppia di formelle e cuscini speciali riscaldati, pinze basculanti e dispositivo di ripiegatura all’esterno bordo boetta.

Sistema rotante garbasperoni a 8 stazioni di lavoro: 4 calde equipaggiate con formella e cuscino in gomma e 4 fredde equipaggiate con formella e campana gonfiabile.

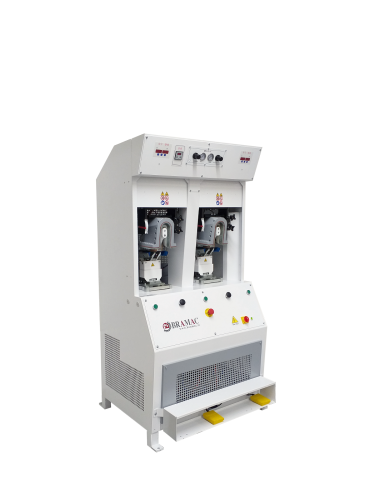

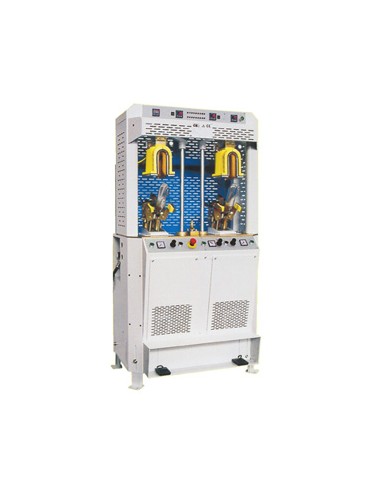

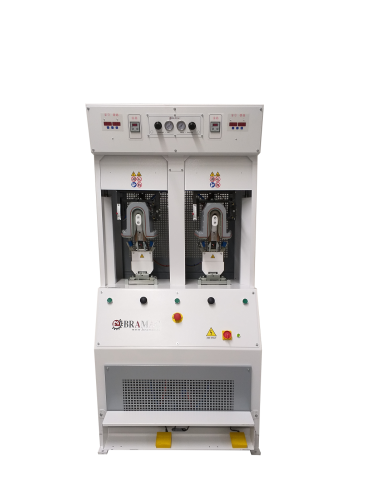

Macchina garbasperoni a 2 stazioni calde dotata di campane gonfiabili sottovuoto.

Serie Compact.

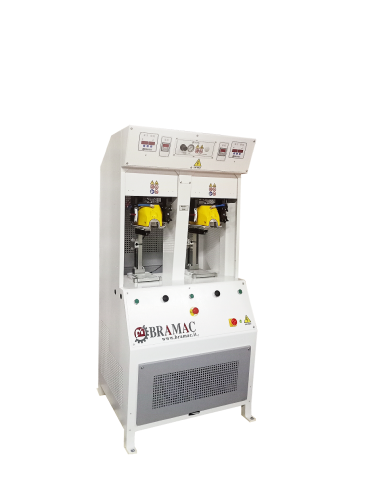

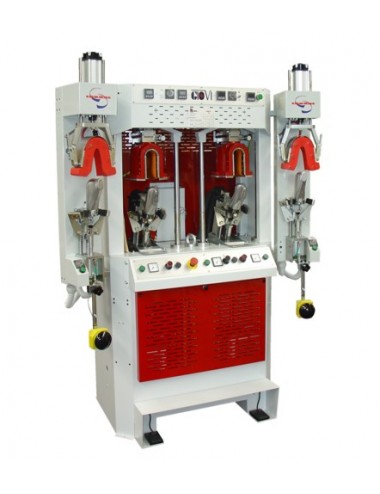

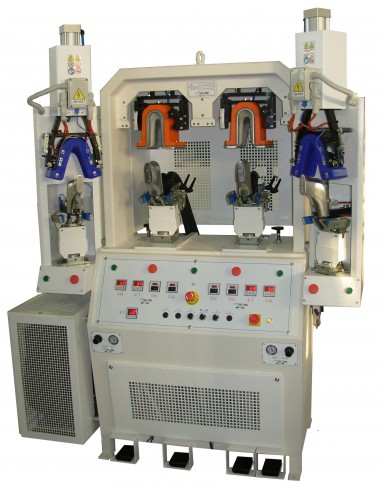

Macchina garbasperoni a 4 stazioni di lavoro: 2 calde per la riattivazione della tomaia e 2 per la sagomatura dotata di  cuscini in gomma, pressori laterali pneumatici e pinze anche su stazioni riattivazione.

Serie Top.

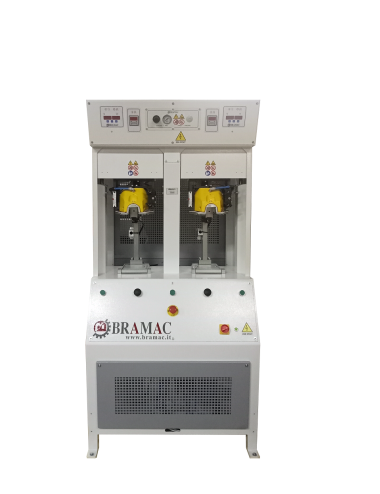

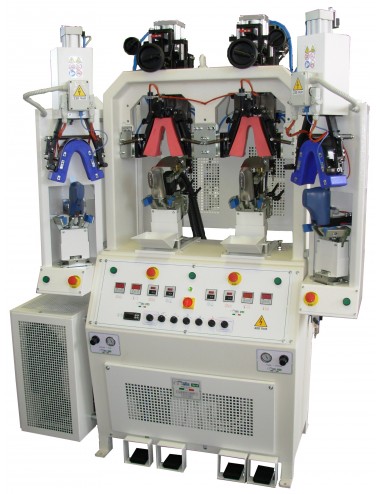

Macchina garbasperoni a 4 stazioni di lavoro: 2 calde per la riattivazione della tomaia e 2 per la sagomatura dotata di campane gonfiabili e pinze anche sulle stazioni riattivazione.

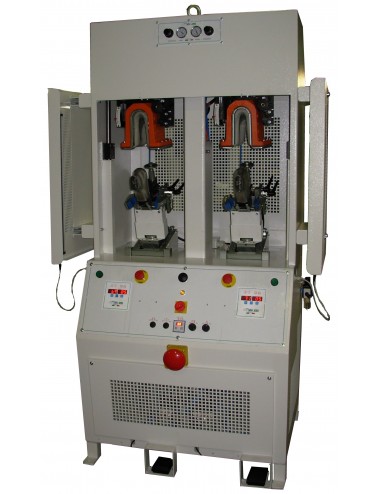

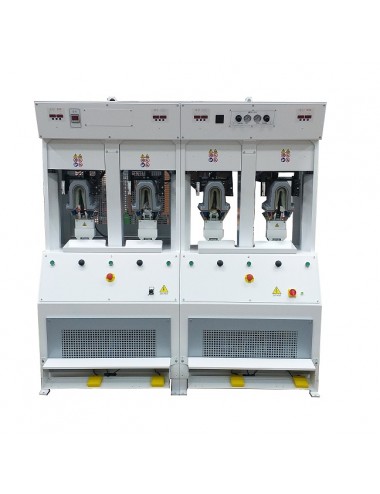

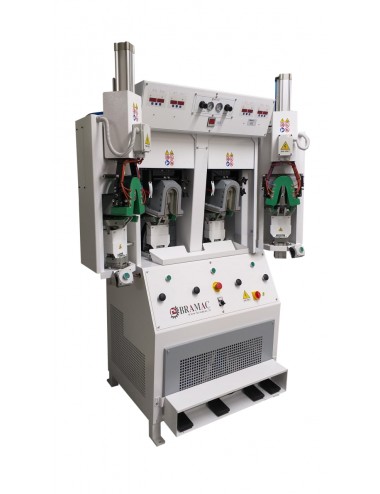

2 hot and 2 cold stations Backpart moulding machine.

Any type of uppers, the machine is particulary indicated to manage uppers with thermoplastic or thermoadesive coated counters.
