Hammering Machines

Machine for beating and ironing uppers and boots, as well as assembly seams on bags, suitcases, seats and backrests.

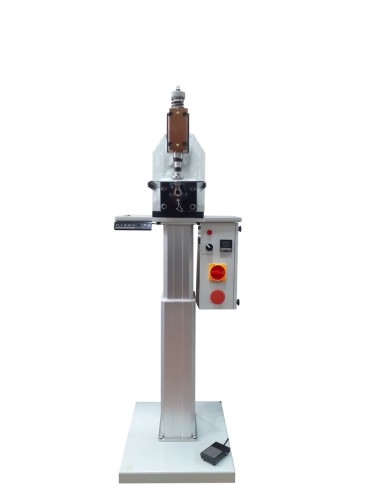

• Beating and ironing machine equipped with anvil arm
• Heated anvil with temperature control up to 180°C
• Support plate
• Spare anvil for 90° beating operations
• Spare hammer (reduced dimensions)
• Height-adjustable column

Beating and ironing machine designed to flatten and press seams and to close the raw edge of the lining after trimming on finished footwear.

The machine is equipped with a heated anvil foot, with temperature adjustment controlled by a thermostat.

Beating and ironing machine equipped with a long anvil arm and, upon request, a support plate. It is used for beating and ironing uppers, boots and, in the leather goods sector, the seams of bags, suitcases, collars, handles, backrests and seats.

The machine is equipped with a heating system for the anvil foot.

The anvil temperature can be adjusted by means of a thermostat controller.

Bottom beating machine for processing the shoe bottom and for leather ironing operations on women's footwear.

A roller-type beating disc equipped with rings performs the shoe bottom processing, while a series of heated hammers (side and front) carry out the leather ironing operation.

Punching machine for Ideal processing, suitable for perforating leather goods or, in sandal production, for punching strap slots in insoles.

• The machine features an adjustable stroke for materials up to 10 mm thick
• Punching is performed by means of a die/punch system operated by pedal control
• The slot length is determined by the pedal pressing time, while the slot width depends on the diameter of the punch used
• Available punch diameters: 2 mm – 2.4 mm – 3 mm – 3.5 mm – 4 mm
• The 18-hole die can be supplied with all holes of the same size or with multiple sizes, up to a maximum of 5 different sizes
• The hole dimensions correspond exactly to the punch diameters

Bottom beating machine for processing the shoe bottom and for leather ironing operations on men's footwear and boots.

A roller-type beating disc equipped with rings performs the shoe bottom processing, while a series of heated hammers (side and front) carry out the leather ironing operation.

The machine is also equipped with a side diamond grinding wheel connected to a built-in dust extraction unit.
