Stamping Machines

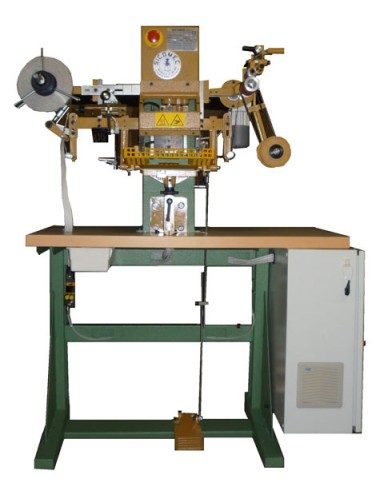

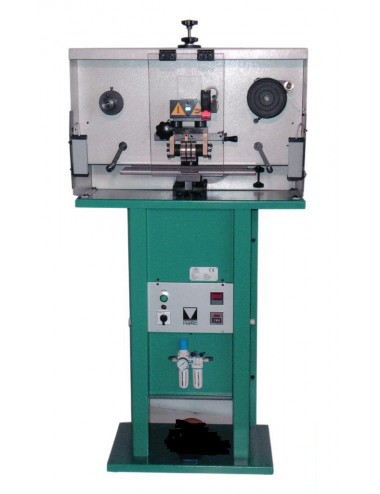

Pneumatic post-bed stamping machine for insoles, equipped with a 4-position cliché holder and mechanical ribbon feed.

Complete with timer unit, electronic temperature controller and optical projector.

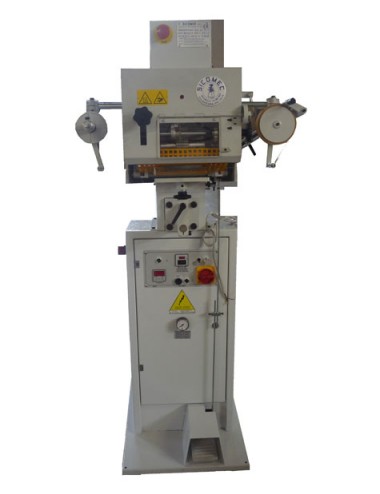

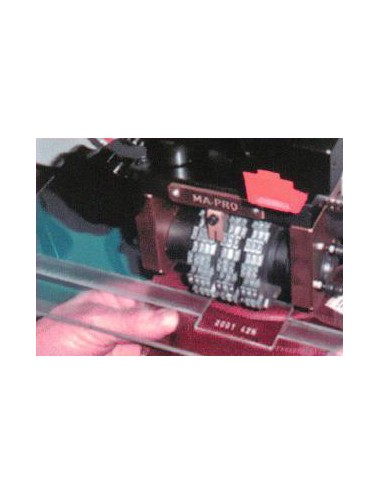

Pneumatic post-bed lining stamping machine equipped with a numbering unit featuring 10 rows of discs, each with 13 alphanumeric positions.

Complete with timer unit, electronic temperature controller and optical projector.

Pneumatic tabletop transfer-printing machine with ribbon feed controlled either by photoelectric sensor or timer.

Complete with pressure regulator, timer unit and electronic temperature controller.

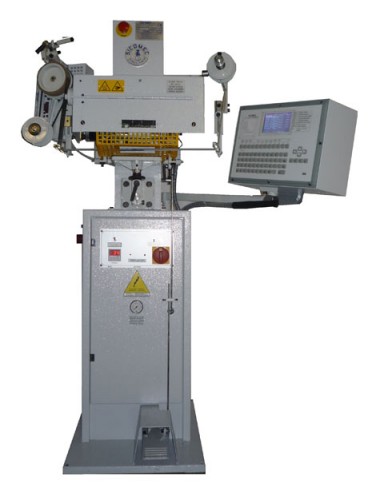

Pneumatic post-bed lining stamping machine equipped with an electronic alphanumeric programmer featuring 10 rows of discs, each with 13 alphanumeric positions.

Complete with:

• Controller with storage capacity for 144 programmable lines
• 8-line display
• Timer unit
• Electronic temperature controller
• Optical projector

Pneumatic post-bed lining stamping machine equipped with an electronic alphanumeric programmer featuring 20 rows of discs, each with 13 alphanumeric positions.

Complete with a controller capable of storing 144 programmable lines, an 8-line display, timer unit, electronic temperature controller and optical projector.

Pneumatic post-bed lining stamping machine equipped with an electronic alphanumeric programmer featuring 20 rows of discs, each with 39 alphanumeric positions.

Complete with a controller capable of storing 144 programmable lines, an 8-line display, movable carriage, closed-upper stamping device, photoelectric safety barrier, timer unit, electronic temperature controller and optical projector.

Pneumatic post-bed box stamping machine equipped with an electronically controlled numbering unit featuring 35 rows of discs, each with 39 alphanumeric positions.

Complete with a controller capable of storing 144 programmable lines, an 8-line/group display, timer unit and electronic temperature controller.

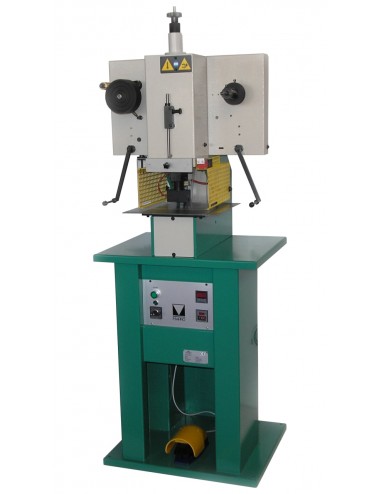

Pneumatic column-mounted branding machine equipped with a cliché holder, electric start pedal and automatic foil feed adjustable from 0 to 200 mm (available in all colours).

The PK21N is suitable for marking leather goods, leather articles and similar products.

The foil pigment is transferred onto the workpiece, reproducing the design engraved on the die.

Contact time is controlled by an electronic timer adjustable from 0 to 9.99 seconds, while marking depth can be set via an external mechanical stop.

Die temperature is adjustable from 0°C to 150°C through a probe-controlled temperature regulator.

The PK21N is equipped with a two-hand safety control system and a key-operated limit switch.

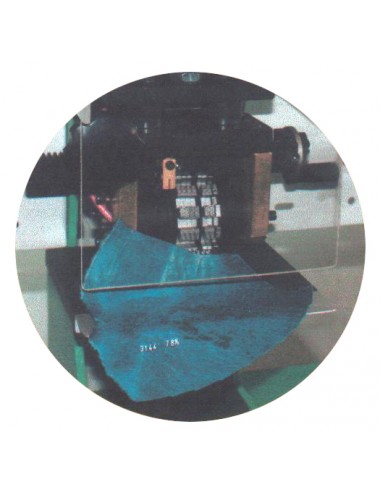

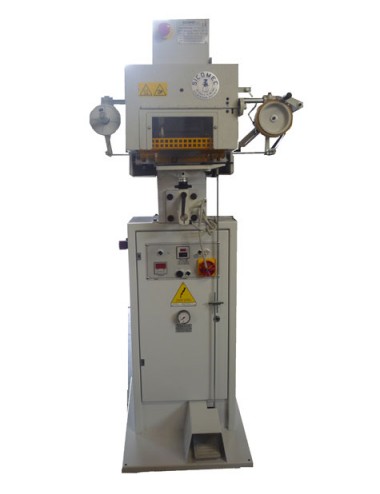

Pneumatic marking machine for linings, uppers and belts, equipped with a hot numbering unit featuring 10 discs and an automatic foil feed adjustable from 0 to 200 mm (available in all colours).

Under the effect of heat and pressure, the colouring substance of the foil is transferred onto the workpiece, reproducing the printed characters.

The contact time between the numbering unit and the workpiece is controlled by an electronic timer adjustable from 0 to 9.99 seconds, while the marking depth can be adjusted by means of an external mechanical stop.

The operating temperature of the marking die is adjustable from 0°C to 150°C by means of a probe-controlled temperature regulator.

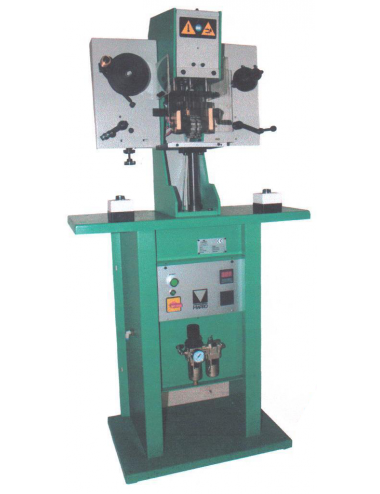

Pneumatic column-mounted marking machine for linings and complete uppers, equipped with a hot numbering unit featuring 7 discs and an automatic foil feed adjustable from 0 to 200 mm (available in all colours).

Under the effect of heat and pressure, the colouring substance of the foil is transferred onto the workpiece, reproducing the printed characters.

The operating temperature of the marking die is adjustable from 0°C to 150°C by means of a probe-controlled temperature regulator.

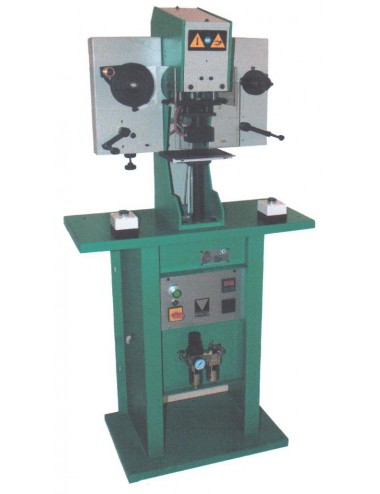

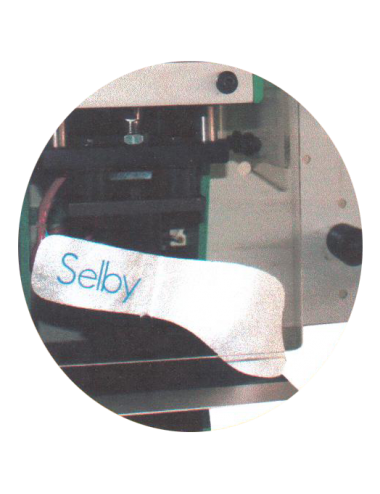

Pneumatic column-mounted branding machine equipped with a cliché holder. The machine is suitable for marking insoles, heel pads and soles made of any material and is fitted with an electric foot pedal for print activation and an automatic foil feed adjustable from 0 to 200 mm (available in all colours).

Under the effect of heat and pressure, the colouring substance of the foil is transferred onto the workpiece, reproducing the engraved characters.

The operating temperature of the marking die is adjustable from 0°C to 150°C by means of a probe-controlled temperature regulator.

The E32T is equipped with a two-hand safety control system and a key-operated electrical limit switch.

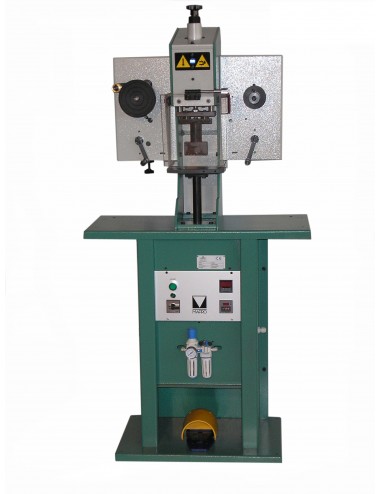

Pneumatic column-mounted branding machine equipped with a cliché holder and electric start pedal.

The machine is suitable for marking insoles, heel pads and soles made of any material and is equipped with an electric print-start pedal and an automatic foil feed adjustable from 0 to 200 mm (available in all colours).

Under the effect of heat and pressure, the colouring substance of the foil is transferred onto the workpiece, reproducing the design engraved on the die.

The operating temperature of the marking die is adjustable from 0°C to 150°C by means of a probe-controlled temperature regulator.

The E380T is equipped with a two-hand safety control system and a key-operated electrical limit switch.
