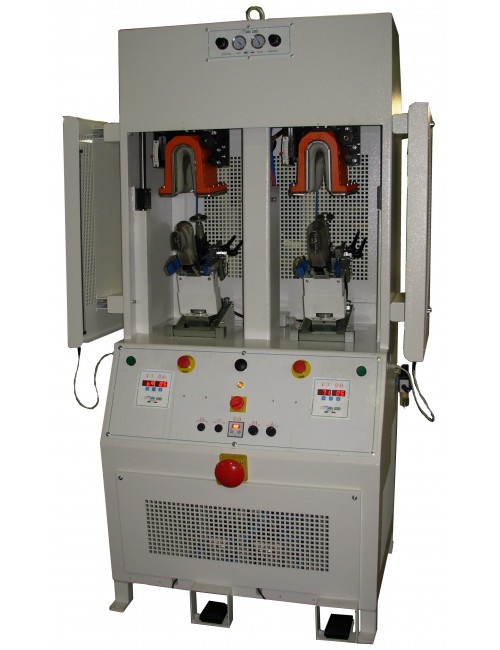

M928CG

Heel-seat shaping machine with 4 working stations: 2 heated stations for upper reactivation and 2 shaping stations, equipped with rubber cushions, pneumatic side pressure pads and clamping pincers, also fitted on the reactivation stations.

Top Series.

Rotary heel-seat shaping system with 8 working stations: 4 heated stations equipped with moulds and rubber cushions, and 4 cooled stations equipped with moulds and inflatable diaphragms.

"Ideal" heel-seat shaping machine with 2 heated stations, equipped with a pair of moulds and special heated cushions, oscillating pincers and an external toe-puff edge folding device.

Hot machine for counter reactivation and backpart moulding on the upper.

The upper locking system is pedal-operated, while the hot cushion descent is controlled by two-hand operation.

Upper smoothing machine equipped with a standard-length aluminium plate (No. 29 or No. 44) for boots.

Heel-seat shaping machine with 4 working stations: 2 heated stations for upper reactivation and 2 shaping stations, equipped with inflatable diaphragms and clamping pincers, also fitted on the reactivation stations.

Heel-seat shaping machine with 4 working stations: 2 heated stations for upper reactivation and 2 shaping stations, equipped with vacuum inflatable diaphragms and clamping pincers, also fitted on the reactivation stations.

Rotary heel-seat shaping system with 8 working stations: 4 heated and 4 cooled stations, equipped with clamping pincers, toe-puff edge folding device and optical projectors.

Backpart moulding machine with 2 hot stations and 2 cold stations, equipped with cushions, inflatable pads with vacuum suction system and pincer units also on the reactivation stations.

• Control panel for programming the machine cycle and the temperatures of the hot and cold moulds
• Complete adjustment of moulds, shaping pads and upper pulling pincers
• Optical projectors for correct upper positioning
• Possibility to manufacture tooling and moulds based on the customer’s last sample

Backpart moulding machine with 2 hot stations and 2 cold stations, equipped with 4 inflatable pads with vacuum suction system and pincer units also on the reactivation stations.

• Control panel for programming the machine cycle and the temperatures of the hot and cold moulds
• Complete adjustment of moulds, shaping pads and upper pulling pincers
• Optical projectors for correct upper positioning
• Possibility to manufacture tooling and moulds based on the customer’s last sample

Heel-seat shaping machine equipped with 2 heated stations and 2 cooled stations for upper toe pre-forming, featuring an inflatable diaphragm system.

Suitable for processing all types of uppers and particularly recommended for thermoplastic or heat-activated counters.
