Sagitta

RP NOVA V4

€0.00
Tax included

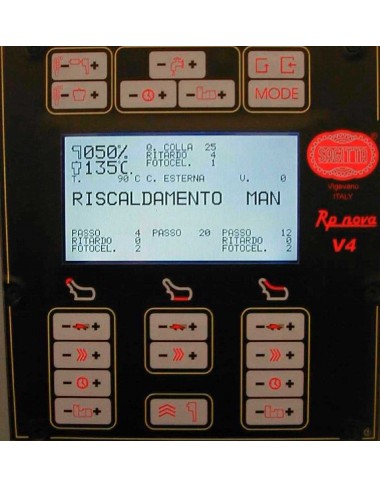

Computer-controlled thermo-folding and gluing machine complete with table and self-ventilated AC motor with automatic positioning.

The RP NOVA V4 features photoelectric sensor-controlled functions. The machine adapts to the individual operator's working method by learning commands and movements during the production of the first piece, storing them in memory and then repeating them automatically, leaving the operator responsible only for guiding the workpiece.

It controls the adhesive flow with exceptional consistency and distributes it inside the fold in the form of fine adhesive filaments.

At the end of each working cycle, the machine stops with the hammer open and activates the glue suction system, preventing adhesive from soiling the upper.

Quantity

Add to favorites Add to compare

Technical Specifications

  • Speed: from 0 to 2,550 rpm
  • Feed pitch: from 0.5 to 6 mm
  • Folding width: 3.2 / 4 / 5 mm
  • Maximum power consumption: 0.8 kW
  • Power supply: single-phase 230 V – 50/60 Hz
  • Dimensions (L × W × H): 110 × 55 × 130 cm
  • Weight: 135 kg

Product Details

RP NOVA V4

Quick Compare

Product
 COM 52 COM 4N RP 67 TF3B RP 68 TE STP
Description

Computerized thermo-folding and gluing machine fully programmable through the control console, with storage capacity for up to 99 processing programs and integrated brushless DC motor.

Possibility to adjust the position of presser foot, guide, folder, photocells, feeding system and glue dispensing.

Thermo-folding and gluing machine for uppers, leather goods and garments.

Adjustable feeding system and folding width setting through control lever.

Thermo-folding and gluing machine with function control through photo-sensors, complete with table and Efka brushless motor with automatic positioning.

The RP 67 TF3B is equipped with electronic automatic control of the following functions:

  • Adhesive dispensing with programmable delay
  • Feed pitch variation on external curves with programmable delay according to operating speed
  • Feed pitch variation on internal curves with programmable delay according to operating speed and automatic cutting operation with adjustable spacing between consecutive cuts
  • Easy selection of the most suitable photo-sensors according to the geometry of the component to be folded

Thermo-folding and gluing machine for insoles, complete with table and Efka motor with automatic positioning.

The machine is equipped with a height-adjustable presser foot lever and a presser foot that slides within its support, allowing easy processing of anatomical insoles when used with additional optional accessories.
Dimensions
 110x55x130 cm
Weight
 140 Kg
Power
 0,7 kW
