The CAMARB N32-AIO-DXSX-310-M is a two-needle narrow post-bed sewing machine with 310 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with electronic backtacking and electronic presser foot lift.
APPLICATION AREA
Â
The N32-310 is used for side closing operations on Derby shoes, for applying the backstay to the upper and for joining the vamp to the quarters of Oxford-style footwear.
The continuous synchronized feeding action of the rotary feed dog and roller presser foot significantly facilitates material guidance.
PRODUCT BENEFITS
TECHNICAL SPECIFICATIONS
Product |
F04 CG-VD
|
F04/VD
|
MT05/2 VD
|
Mtype 868
|
Description |
Special post-bed sewing machine for ornamental stitching on welts (leather and leatherboard), capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system. Efka motor. |
Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system. Efka motor. |
Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request. Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing. The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins. |
Double-needle post-bed sewing machine mounted on a table and stand, featuring bottom feed:
|
Functions |
2 Needles | 2 Needles | 2 Needles | 1 Needle |
Max sewing speed |
500 punti/min | 500 punti/min | 500 punti/min | 2.500 s.p.m. |
Max stitch lenght |
0-12 mm | 0-12 mm | 0-8 mm | 12,0 mm |
Lifting amount of presser foot |
10,0 - 20,0 mm | |||
Needle system |
328-214 x 1 | 328-214 x 1 | 328-214 x 2 | 134-35 |
Voltage |
220V 50/60 Hz | 220V 50/60 Hz | V 230-50/60 hz | |
Dimensions |
106x60x107 cm | |||
Weight |
100 kg | 100 kg | 130 kg | 125 kg |
|
|
|
|
|
The CAMARB N32-AIO-DXSX-175-E is a two-needle electronic narrow post-bed sewing machine with 175 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with electronic backtacking and electronic presser foot lift.
Two-needle Post-bed sewing machine with servo motor integrated into the sewing head.
The CAMARB N32-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings .
Thread trimming device, electric backtack and electric presser foot lift.
The CAMARB N32-CG-E (Electronic Version) is a two-needle electronic post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with large-capacity hook, thread trimmer, electronic backtacking and electronic presser foot lift.
The CAMARB N32-AIO-DXSX-310-E is a two-needle electronic narrow post-bed sewing machine with 310 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with electronic backtacking and electronic presser foot lift.
Electronic two-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear, leather goods and automotive interiors.
Equipped with rotating feed dog transport, roller presser foot, needle feed system, adjustable thread trimmer, automatic backtacking and automatic presser foot lift.
Two-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear and leather goods.
Equipped with rotating feed dog transport, roller presser foot and, depending on the version, automatic thread trimmer, automatic backtacking and automatic presser foot lift.
Double-needle post-bed sewing machine mounted on a table and stand, featuring bottom feed:
Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request.
Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing.
The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.
The CAMARB N32-CG-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.
Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

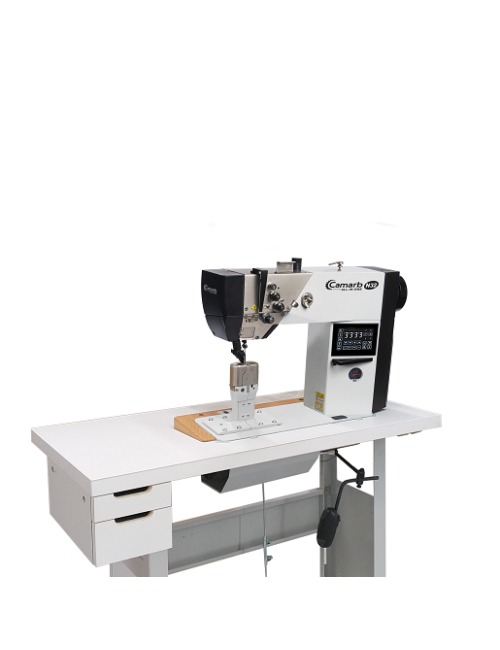

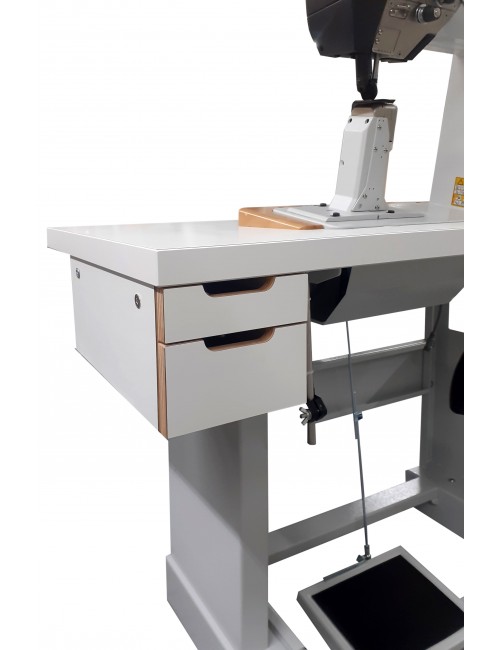

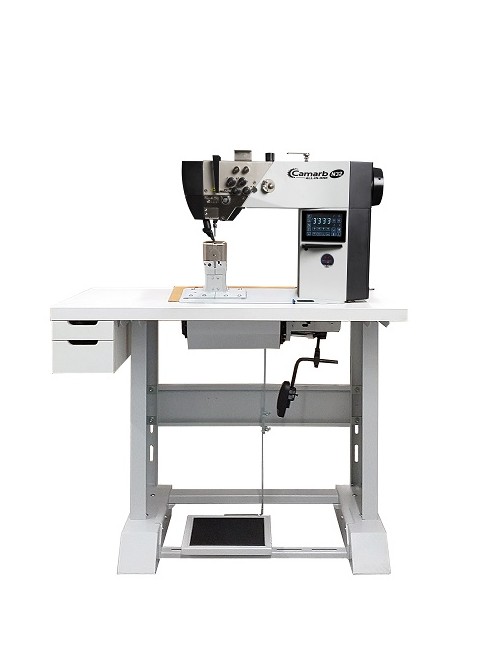

The Camarb N32-AIO-DXSX-175-M is a thin post-bed sewing machine, with raised coloumn at 175 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot.
Electric backtracking and electric presser foot lift.
The CAMARB N32-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.
Thread trimming device, electric backtack and electric presser foot lift.
The CAMARB N32-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.
Thread trimming device, electric backtack and electric presser foot lift.
The CAMARB N32-CG-E (Electronic Version) is a two-needle electronic post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with large-capacity hook, thread trimmer, electronic backtacking and electronic presser foot lift.
The Camarb N32-AIO-DXSX-175-M is a thin post-bed sewing machine, with raised coloumn at 175 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot.
Electric backtracking and electric presser foot lift.
The CAMARB N32-AIO-DXSX-310-M is a two-needle narrow post-bed sewing machine with 310 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with electronic backtacking and electronic presser foot lift.
