Durkopp Adler

Mtype 868

€0.00
Tax included

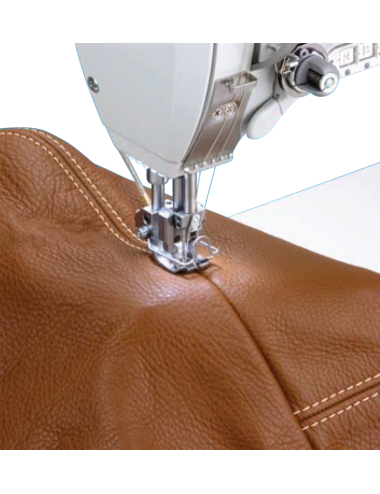

Macchina a colonna a 2 aghi montata su tavolo e sostegno con trasporto inferiore:

  • Trasporto punta d'ago e piedini alternati
  • Barre ago scollegabili
  • Crochet grande montato su albero orizzontale
  • Controllo per 2 differenti lunghezze punto
  • Corsa del piedino regolabile tramite manopola e dispositivo rasafilo
  • Sollevamento del piedino automatico
  • Affrancatura automatica
Quantity

Add to favorites Add to compare

Caratteristiche Tecniche

  • Lunghezza punto max: 12,0 mm
  • Velocità di cucitura max: 2.500 s.p.m.
  • Sistema ago: 134-35
  • Dimensione ago: 90-180
  • Grossezza filato: 80/3 - 10/3
  • Alzata piedino min-max: 10,0 - 20,0 mm
  • Corsa dei piedini alternati max: 9,0 mm
  • Pressione aria: 6 bar
  • Alimentazione: V 230-50/60 hz
  • Consumo max: 1,0 kVa
  • Dimensioni: (LxPxH): 106x60x107 cm
  • Peso: 125 kg circa

Product Details

Mtype 868

Data sheet

Functions
1 Needle
Max sewing speed
2.500 s.p.m.
Max stitch lenght
12,0 mm
Lifting amount of presser foot
10,0 - 20,0 mm
Needle system
134-35
Voltage
V 230-50/60 hz
Dimensions
106x60x107 cm
Weight
125 kg

Download

Cat. Ricambi Durkopp Adler 868

Download (3.43MB)
