Camarb

Camarb N25-STR2S

€0.00
Tax included

Thigh performance sewing machine for shoe’s insoles and for other materials such as leather, fur, wool, mutton and fabrics.

Rotary feed dog and rear cup drive, chain stitch.

Useful for many applications: it is particularly suitable to sew mutton boots but also for nappa, wool, fur, leather and safety shoes.

Suitable also for finishing works of some upper’s sections and for the insole’s application to the upper.

These two parts are sewed by a flat and elastic stitch, which let to lightly improve the shoe’s outline.

Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Stitch type: 501
  • Needle system: 134
  • Needle size: 110/140
  • Recommended thread size: 30/40
  • Max. sewing speed: 2,300 spm
  • Recommended sewing speed: 1,800 spm
  • Stitch length: 3.0 – 6.5 mm
  • Needle bar stroke: 36 mm
  • Take-up lever stroke: 82 mm
  • Power supply: Single-phase 230 V, 50/60 Hz
  • Dimensions (L × W × H): 105 × 55 × 110 cm
  • Weight: 80 kg

Product Details

Camarb N25-STR2S

Data sheet

Max sewing speed
2300/min
Max stitch lenght
3,0 - 6,5 mm
Kind of stitch
501
Needle system
134
Voltage
monofase V 230 - 50/60 Hz
Dimensions
105x55x110 cm
Weight
80 Kg

Download

Man. Istr. - Cat. Ric- N25-STR2S

Download (5.59MB)

Scheda Tecnica N25-STR-2S

Download (237.84KB)

In the same category

443-1 443-1 443-1
Strobel

443-1

Heavy-duty machine designed for stitching insoles to uppers.

Compared with conventional attachment methods, the Strobel stitching process significantly reduces material consumption.

This machine is capable of sewing leather or textile materials up to 7 mm thick.

The gathering device assists in creating fullness while stitching the upper.

Optional equipment (different feed systems and front cups) enables the machine to manufacture children's footwear or process particularly delicate materials.

Kits are also available for cord attachment applications (using cords up to 1.7 mm or up to 2.5 mm in diameter) as well as for California-type footwear construction.

You might also like

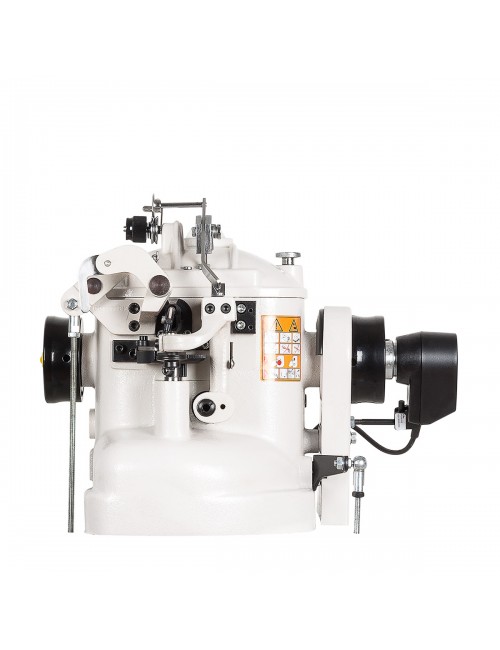

Spare Parts Camarb N25-STR2S
