Camarb N32-AIO-DXSX-310-E

Name: Camarb N32-AIO-DXSX-310-E
Brand: Camarb
SKU: Camarb N32-AIO-DXSX-310-E
Availability: InStock

€0.00

Tax included

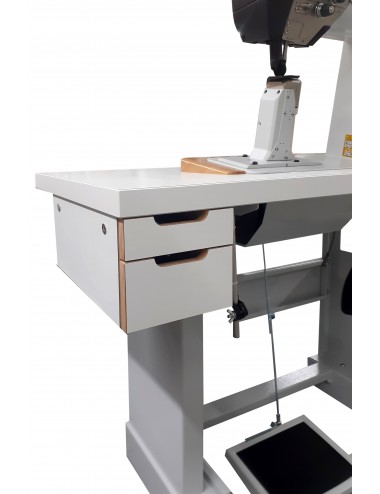

The Camarb N32-AIO-DXSX-310-E is a thin post-bed electronics sewing machine, with raised coloumn at 310 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Electric backtracking and electric presser foot lift.

Quantity

Add to favorites Add to compare

APPLICATION AREA

The N32-310 is suitable for the side stitching of derby shoes, for the application of outside counters on uppers and for the stitching of vamps on the upperquarters of oxford footwears.

Its continuos synchronic mechanism of wheel feed, needle feed and driven roller presser, makes materials driving considerably easier.

PRODUCT ADVANTAGES

The reduced size of the post-bed allows to sew tight uppers, that would be very hard to sew with standard post-beds.
New stepper motors
Ergonomic and innovative design with more spaces for the operator and optimal visual comfort for a better work area
Roller press foot feeding control system
Higher stability during work-cycle steps
Less vibrations during the sewing process
No perforation during the backtracking of the starting and ending points with better quality of points thanks to the stepper motors
Constant stitch length for the entire seam thanks to the step motors
Easy replacement for wearing parts
Excellent quality-price ratio for the sewing machine and the parts
Automatic backtack activated by manual lever or push button
Large touch equipped with a versatile and intuitive software for programming seam sides, curves, backtacks and stitch length
New LED lighting in the work area adjustable via touch
Control keypad, backtack, half stitch and full stitch
Homogeneous seam with the same length of the stitches in the ant kind of curve

PFEATURES / TECHNICAL DATA

Max sewing speed: 2.800 r.p.m. (mod. A-B)
Max sewing speed: 2.400 r.p.m. (mod. C)
Max stitch length: 5,0 mm
Kind of stitch: 301
Lifting amount of presser foot: 7 mm
Needle system: 134-LR
Voltage: 230 V -50/60Hz
Sizes: 105x55x127 cm
Weight: 100 Kg

Product Details

Reference Camarb N32-AIO-DXSX-310-E

Data sheet

Functions: 2 needles sewing
Max sewing speed: 2.400 r.p.m. (mod. C)
2.800 r.p.m. (mod. A-B)
Max stitch lenght: 5,00
Kind of stitch: 301
Lifting amount of presser foot: 7 mm
Needle system: 134-LR
Voltage: 230 v - 50/60Hz
Dimensions: 105x55x127 cm
Weight: 100 Kg

Download

Scheda Tec. N32-AIO-DXSX-310-E

Download (613.67KB)
