Camarb

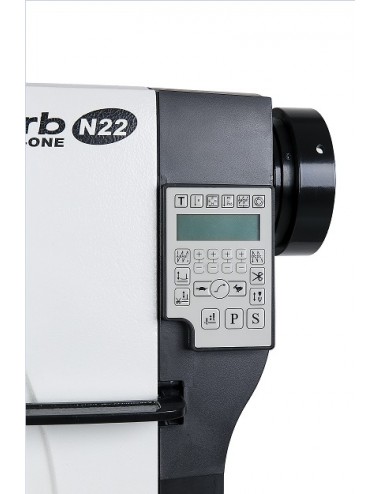

Camarb N22-AIO

€0.00
Tax included

Two-needle Post-bed sewing machine with servo motor integrated into the sewing head.

  • Two needles
  • Rotary feed dog
  • Needle-synchronized roller presser foot
  • Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.
Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Max. sewing speed: 2,000 rpm
  • Stitch length: 0.6 – 3.6 mm
  • Automatic presser foot lift: 7 mm
  • Manual presser foot lift: 7 mm
  • Presser foot lift by knee lifter: 10 mm
  • Needle system: 134 LR
  • Needle gauge: Version A-B (1.2–2.2 mm), B-C (1.2–2.4 mm), C (1.8–2.4 mm)
  • Power supply: 220–240 V, 50/60 Hz
  • Max. power consumption: 1.2 kVA
  • Net weight: 103 kg
  • Dimensions: 105 × 55 × 127 cm

Product Details

Camarb N22-AIO

Data sheet

Functions
2 Needles Sewing
Max sewing speed
2.000 r.p.m.
Lifting amount of presser foot
7 mm
Needle system
134-LR
Voltage
220/240 V - 50/60Hz
Dimensions
105x55x127 cm
Weight
103 Kg

Download

Scheda Tecnica Camarb N22-AIO

Download (717.02KB)

Cat. Ricambi CAMARB N21-N22 AIO

Download (2.03MB)

Manuale Uso CAMARB N21-N22 AIO

Download (7.4MB)

Manuale Istr. CAMARB N21-N22 AIO

Download (746.7KB)
