Camarb N32-AIO-E

Name: Camarb N32-AIO-E
Brand: Camarb
SKU: Camarb N32-AIO-E
Availability: InStock

€0.00

Tax included

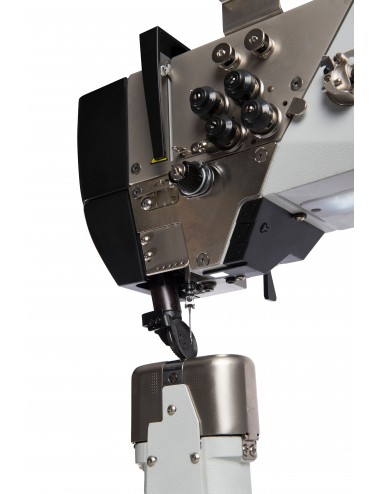

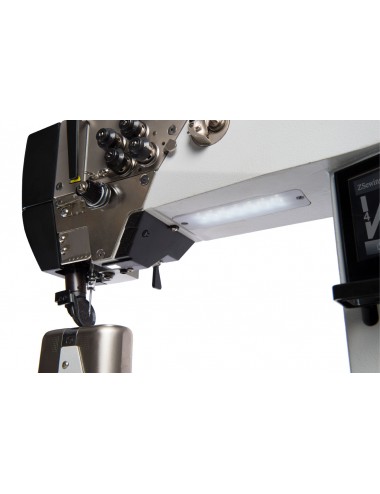

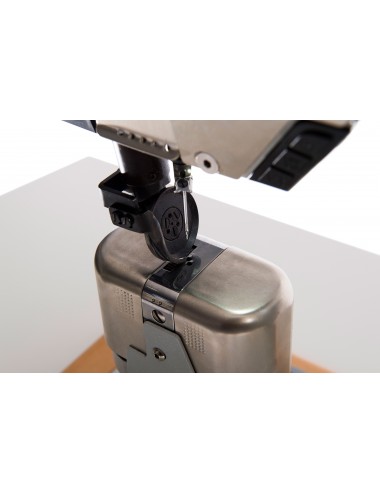

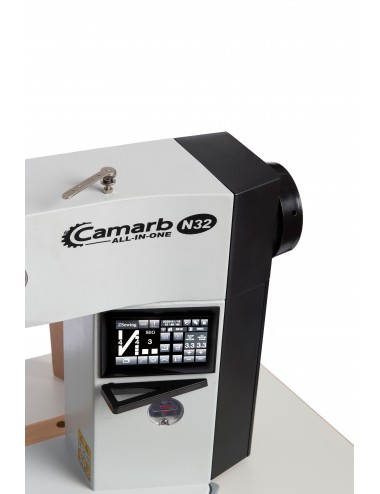

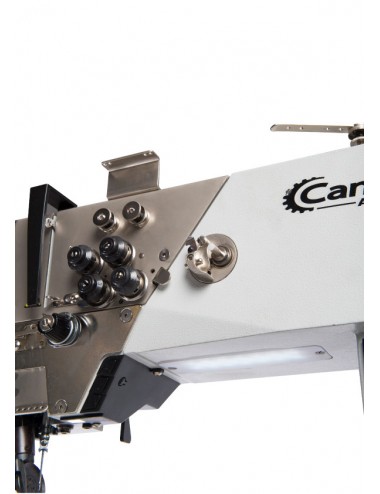

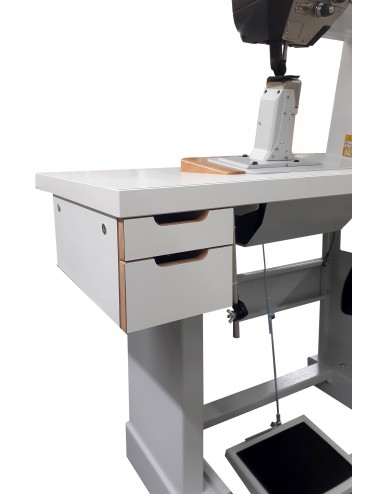

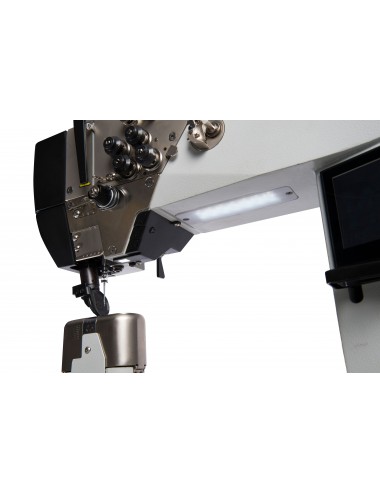

The CAMARB N32-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.

Thread trimming device, electric backtack and electric presser foot lift.

Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

Stitch type: 301 (double lockstitch)
Needle system: 134
Clearance under roller presser foot: 7 mm
Clearance width: 265 mm
Clearance height: 70 mm
Post height: 180 mm

HEAD SECTION DIMENSIONS

Length: approx. 620 mm
Width: approx. 155 mm
Height (above the table): approx. 425 mm
Base plate dimensions: 520 × 177 mm
Max. sewing speed: 3,000 spm, depending on material, sewing application and stitch length
Net head weight: 70 kg
Gross head weight: 80 kg

Product Details

Reference Camarb N32-AIO-E

Data sheet

Functions: 2 needles sewing
Kind of stitch: 301
Needle system: 134

Download

Man Istr. N31-32-33

Download (6.25MB)

Man Prog. N31E-32E-33E

Download (7.69MB)

Scheda Tecnica N32-AIO-E

Download (190.63KB)

Cat. Ric. N31E-N32E-N33E AIO CG

Download (6.24MB)

Cat Ric N31E-N32E-N33E AIO CG V2

Download (6.13MB)

Cat. Ric. N31EI-N32EI-N33EI-V2

Download (6.83MB)

Quick Compare

Product	F04 CG-VD	F04/VD	MT05/2 VD	Mtype 868
Description	Special post-bed sewing machine for ornamental stitching on welts (leather and leatherboard), capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system. Efka motor.	Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system. Efka motor.	Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request. Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing. The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.	Double-needle post-bed sewing machine mounted on a table and stand, featuring bottom feed: Needle-feed mechanism with alternating presser feet Independently disengageable needle bars Large hook mounted on a horizontal shaft Control for two different stitch lengths Presser foot stroke adjustable by means of a control knob and equipped with thread trimming device Automatic presser foot lift Automatic backtacking
Functions	2 Needles	2 Needles	2 Needles	1 Needle
Max sewing speed	500 punti/min	500 punti/min	500 punti/min	2.500 s.p.m.
Max stitch lenght	0-12 mm	0-12 mm	0-8 mm	12,0 mm
Lifting amount of presser foot				10,0 - 20,0 mm
Needle system	328-214 x 1	328-214 x 1	328-214 x 2	134-35
Voltage		220V 50/60 Hz	220V 50/60 Hz	V 230-50/60 hz
Dimensions				106x60x107 cm
Weight	100 kg	100 kg	130 kg	125 kg

In the same category

CMCI

F04/VD

Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

Efka motor.

Camarb

Camarb N32-AIO-DXSX-175-M

The Camarb N32-AIO-DXSX-175-M is a thin post-bed sewing machine, with raised coloumn at 175 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot.

Electric backtracking and electric presser foot lift.

CMCI

MT05/2 VD

Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request.

Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing.

The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.

Camarb

Camarb N32-AIO-DXSX-310-M

The CAMARB N32-AIO-DXSX-310-M is a two-needle narrow post-bed sewing machine with 310 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.

Equipped with electronic backtacking and electronic presser foot lift.

Camarb

Camarb N32-AIO-CG-E

The CAMARB N32-CG-E (Electronic Version) is a two-needle electronic post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.

Equipped with large-capacity hook, thread trimmer, electronic backtacking and electronic presser foot lift.

Pfaff

574

Two-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear and leather goods.

Equipped with rotating feed dog transport, roller presser foot and, depending on the version, automatic thread trimmer, automatic backtacking and automatic presser foot lift.

Camarb

Camarb N32-AIO-DXSX-175-E

The CAMARB N32-AIO-DXSX-175-E is a two-needle electronic narrow post-bed sewing machine with 175 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.

Equipped with electronic backtacking and electronic presser foot lift.

Pfaff

1574

Electronic two-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear, leather goods and automotive interiors.

Equipped with rotating feed dog transport, roller presser foot, needle feed system, adjustable thread trimmer, automatic backtacking and automatic presser foot lift.

Camarb

Camarb N32-AIO-CG-M

The CAMARB N32-CG-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

Durkopp Adler

Mtype 868

Double-needle post-bed sewing machine mounted on a table and stand, featuring bottom feed:

Needle-feed mechanism with alternating presser feet
Independently disengageable needle bars
Large hook mounted on a horizontal shaft
Control for two different stitch lengths
Presser foot stroke adjustable by means of a control knob and equipped with thread trimming device
Automatic presser foot lift
Automatic backtacking

Camarb

Camarb N22-AIO

Two-needle Post-bed sewing machine with servo motor integrated into the sewing head.

Two needles
Rotary feed dog
Needle-synchronized roller presser foot
Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

CMCI

BF-315

Machine for stitching uppers to cup soles (particularly suitable for children's footwear), featuring needle-feed mechanism with rotary hook.

Optional: Automatic initial and final backtacking and reverse stitching function.

Camarb

Camarb N32-AIO-DXSX-310-E

The CAMARB N32-AIO-DXSX-310-E is a two-needle electronic narrow post-bed sewing machine with 310 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.

Equipped with electronic backtacking and electronic presser foot lift.

CMCI

F04 CG-VD

Special post-bed sewing machine for ornamental stitching on welts (leather and leatherboard), capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

Efka motor.

Camarb

Camarb N32-AIO-M

The CAMARB N32-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings .

Thread trimming device, electric backtack and electric presser foot lift.

Camarb

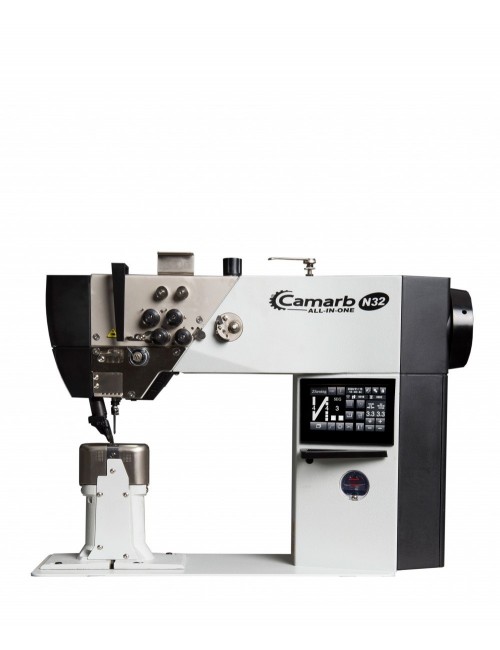

Spare Parts Camarb N32-AIO-E-V1
