Bramac

Bramac BR-57

€0.00
Tax included

Laminating machine with manual rotation control of the rotary table, adjustable stroke, parallel pressing and glue reactivation effect through heated plate.

  • The rotary table with 700 mm diameter is covered with a soft mat and silicone sheet
  • Manual rotation control
  • Easy tilting system to facilitate operations
  • Rotary table covered with soft mat and silicone sheet
  • Glue reactivation effect through heated plate
Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Dimensions (L × W × H): 950 × 780 × 1300 mm
  • Max. operating pressure: 8 bar
  • Hourly production: 2000 pairs
  • Power supply: 220V / 50 Hz
  • Power: 1.8 kW
  • Weight: 210 kg

Product Details

Bramac BR-57

Data sheet

Voltage
220V / 50 Hz
Dimensions
950x780x1300 mm
Weight
210 Kgs
Power
1.8 Kw
Working Pressure
0.80 Mpa

Download

Scheda Tecnica BR-57

Scheda Tecnica BR-57

Download (1.77MB)

Manuale Istruzioni BR-57

Manuale Istruzioni BR-57

Download (1.64MB)

Catalogo Ricambi Bramac BR-57

Download (688.19KB)

Quick Compare

Product
 COMBI 46 COMBI 65 AS 1450 303
Description

Easy to use and compact, the COMBI 46 rotary bonding machine is designed for applications where space, dimensions and costs must be minimized.

It allows perfect continuous bonding of pre-glued materials without work interruptions.

Temperature, timing and pressure are adjustable within a wide operating range.

Easy to use and compact, the COMBI 65 rotary bonding machine is designed for applications where space, dimensions and costs must be minimized.

It allows perfect continuous bonding of pre-glued materials without work interruptions.

Temperature, timing and pressure are adjustable within a wide operating range.

Universal sole attaching machine with 2 working stations, particularly suitable for pressing Opanka-type soles and soles with very high edges, which would be almost impossible to press using traditional machines.

The machine is equipped with mechanical, electromechanical and photoelectric safety systems, as well as electronically adjustable support column.

Bonding machine with manual rotation of the iron working table, electronic temperature control and pressing plate with non-stick Teflon coating.
Dimensions
 128 x 90 x 90 cm 128x110x90 cm
Weight
 200 Kg 260 Kg
Working Pressure
 4 bar 4 bar

In the same category

PA 111
ITM

PA 111

The PA 111 is a laminating press with book-type opening, designed to facilitate material positioning.

The machine is supplied with a dedicated mould for bonding reinforcements onto elastic sock uppers while simultaneously shaping the toe area.

Thanks to its lever system, it develops a high closing force and can alternatively be supplied, instead of the mould, with a flat working surface featuring felt and silicone on the lower side and PTFE paper on the upper side.

303
Volber

303

Bonding machine with manual rotation of the iron working table, electronic temperature control and pressing plate with non-stick Teflon coating.

Bramac BR-111
Bramac

Bramac BR-111

Manual heat press ideal for different types of processing

  • Equipped with a working area of 150x150 mm
  • It guarantess uniform pressing even at the ends of the work surface
  • Using the control panel it is possible to adjust the temperature of the upper plate and the pressing time
  • The pressure can be adjusted can be adjusted using the knob above the upper plate
  • The maximum thickness worked is 8 mm and the maximum temperature is 232°C
COMBI 65
Fratelli Alberti

COMBI 65

Easy to use and compact, the COMBI 65 rotary bonding machine is designed for applications where space, dimensions and costs must be minimized.

It allows perfect continuous bonding of pre-glued materials without work interruptions.

Temperature, timing and pressure are adjustable within a wide operating range.

OP-450GS
Oshima

OP-450GS

Continuous fusing machine for fabrics equipped with trolley.

  • Belt width: 45 cm
  • The machine is open on one side, allowing the fusing of fabrics wider than the belt width
  • It also enables edge fusing without the need for heat treatment across the entire fabric surface
  • Maximum pressure: 1.5 kg/cm²
  • Electronic temperature control ensures a uniform and durable bond between the fabric, fusible interlining and interfacing materials
  • Rotating scrapers prevent the interlining from sticking to the conveyor belts
AS 1450
Iron Fox

AS 1450

Universal sole attaching machine with 2 working stations, particularly suitable for pressing Opanka-type soles and soles with very high edges, which would be almost impossible to press using traditional machines.

The machine is equipped with mechanical, electromechanical and photoelectric safety systems, as well as electronically adjustable support column.

Bramac BR-HB1-2-NEW
Bramac

Bramac BR-HB1-2-NEW

Pneumatic hot press with two working surfaces, suitable for bonding leather with reinforcements or fabrics.

  • Control panel for programming the machine cycle and temperature
  • Adjustable pressure and carriage stroke
  • Heated plate dimensions: 40 × 50 cm
  • Max. temperature: 245°C
COMBI 46
Fratelli Alberti

COMBI 46

Easy to use and compact, the COMBI 46 rotary bonding machine is designed for applications where space, dimensions and costs must be minimized.

It allows perfect continuous bonding of pre-glued materials without work interruptions.

Temperature, timing and pressure are adjustable within a wide operating range.

AS1800 K52 AS1800 K52 AS1800 K52
Iron Fox

AS1800 K52

New patented universal sole attaching machine with one or two working stations, suitable for all types of technical, sports, military and classic footwear.

In recent years, the entire mechanical system has been redesigned to ensure greater operator safety, and now the electronic protection systems have also been upgraded.

AP6
Fratelli Alberti

AP6

Flat bonding machine with double trolley and single heated plate mounted on sheet metal cabinet.

Bramac BR-HB1-2 Bramac BR-HB1-2 Bramac BR-HB1-2
Bramac

Bramac BR-HB1-2

Pneumatic hot press with two working surfaces, suitable for bonding leather with reinforcements or fabrics.

  • Control panel for programming the machine cycle and temperature
  • Adjustable pressure and carriage stroke
  • Heated plate dimensions: 40 × 60 cm
  • Max. temperature: 245°C

You might also like

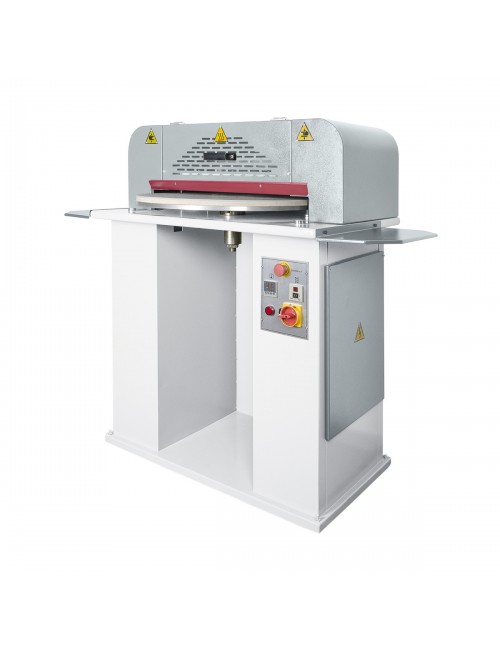

Spare Parts Bramac BR-57
