Camarb

Camarb N31-AIO-E-C997-CA

€0.00
Tax included

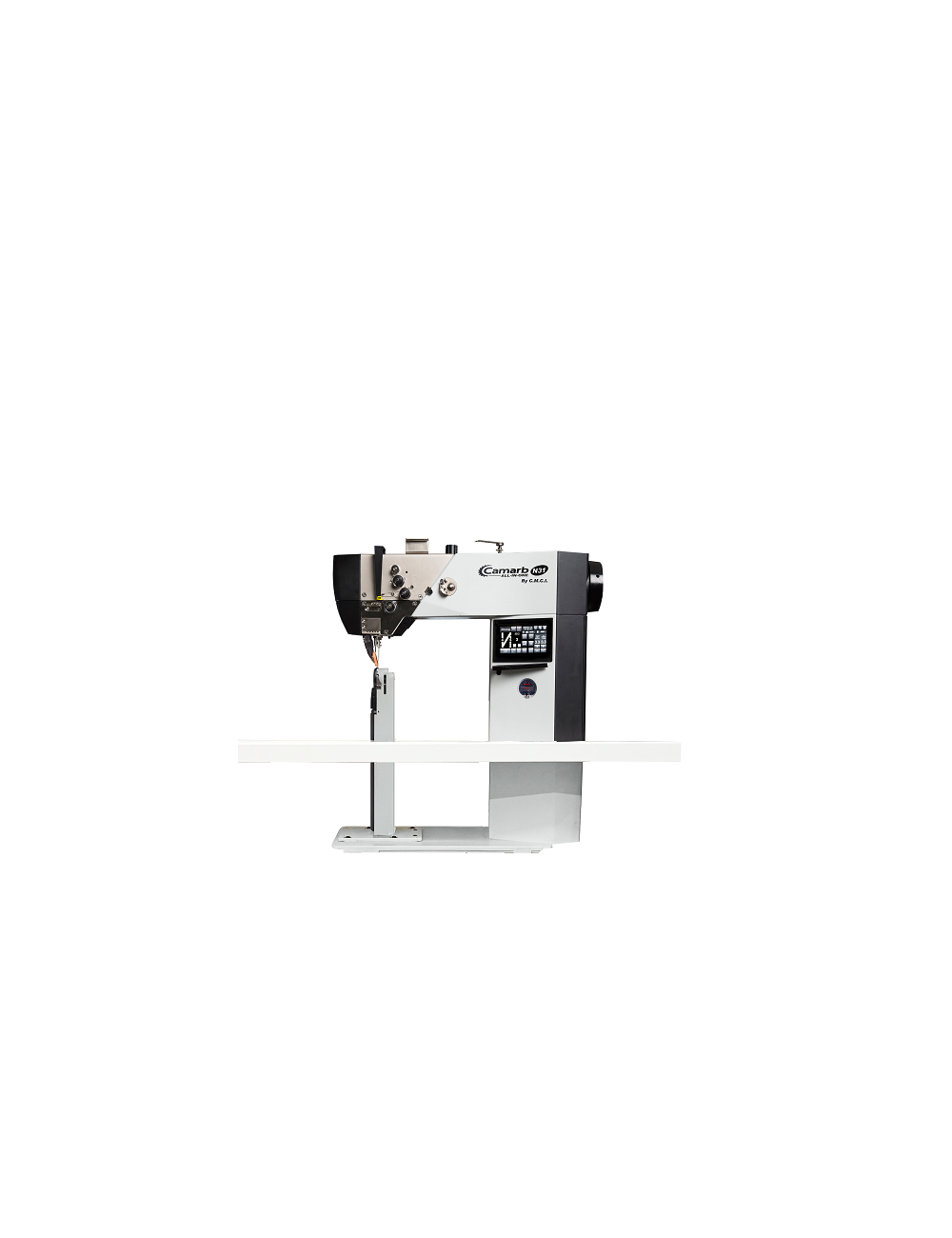

The new CAMARB N31-ALL-IN-ONE-E-C997-CA is a post-bed sewing machine with a special hight column (400 mm), single needle, electronic with integrated servo motor.

Thread trimmer, doulbe transport rotating synchronized by means of stepper motors.

Rotating horizontal hook, angle shaped sewing on heel.

Quantity

Add to favorites Add to compare

APPLICATION AREA

It’s needle-moving system allows to sew difficult materials susch as padded items or multi-layer materials, avoding them from slipping.

When sewing closed uppers, the right post-bed allows to move the upper on the left side of the post-bed, advantageous features for child’s uppers.

The thread trimmer, the backtracking and the presser foot lifter make the working progress more efficient.

PRODUCT ADVANTAGES

  • New stepper motors
  • The 40 cm coloumn is suitable for boots sewing

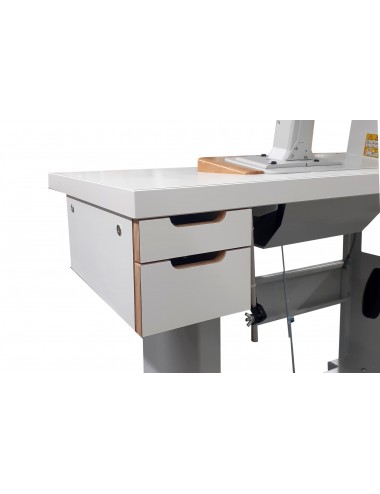

  • Table equipped with a removable section which allows the correct boot positioning on the coloumn
  • Ergonomic and innovative design with more spaces for the operator and optimal visual comfort for a better work area
  • Roller press foot feeding control system
  • Higher stability during work-cycle steps
  • Less vibrations during the sewing process
  • No perforation during the backtracking of the starting and ending points, with better quality of points thanks to the stepper motors
  • Constant stitch length for the entire seam thanks to the step motors
  • Assembled hook on horizontal shaft to allow a rapid bobbin extraction without upper dislodging betwixt the two transport whells
  • The reduced dimensions of the column allow, during the upper assembling step, to make seams easier on woman and child upper
  • New thread trimmer, easy to adjust, with short threads cutting sistem
  • Easy replacement for wearing parts
  • Excellent quality-price ratio for the sewing machine and the parts
  • Automatic backtack activated by manual lever or push button
  • Large touch equipped with a versatile and intuitive software for programming seam sides, curves, backtacks and stitch length
  • New LED lighting in the work area adjustable via touch
  • Control keypad, backtack, half stitch and full stitch
  • Homogeneous seam with the same length of the stitches in the ant kind of curve

FEATURES/TECHNICAL DATA

  • Max sewing speed: 2.500 r.p.m.
  • Max stitch length: 5,0 mm
  • Kind of stitch: 301
  • Needle system: 134-LR
  • Voltage: 230 V - 50/60Hz
  • Dimensions: 105x55x127 cm
  • Weight: 140 kg

Product Details

Camarb N31-ALL IN ONE-E-C997-CA

Data sheet

Functions
1 Needle Sewing
Max sewing speed
2500 r.p.m.
Max stitch lenght
5,0 mm
Kind of stitch
301
Needle system
134 L-R
Voltage
230V - 50/60Hz
Dimensions
105x55x127 cm
Weight
140 KG
New

Download

Catalogo Camarb N31 serie 997

Download (1.74MB)

Scheda Tecnica N31-AIO-E-C997-CA

Download (1.04MB)

Inst. Manual N31-AIO-E-C997-CA

Download (812.57KB)

Instr. Manual N31E-N32E-N33E

Download (7.08MB)

Progr. Manual N31E-N32E-N33E

Download (1.62MB)

Man. Istr. Camarb N31E-N32E-N33E

Download (5.55MB)

Man. Prog. Camarb N31E-N32E-N33E

Download (1.62MB)

Man. Istr. N31-AIO-E-C997-CA

Download (1.18MB)

Cat. Ric. N31-E-AIO-C997-CA-RC

Download (3.86MB)
