Camarb

Camarb N31-AIO-E-C997-CP

€0.00
Tax included

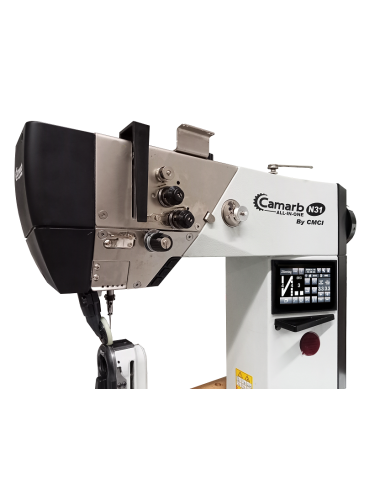

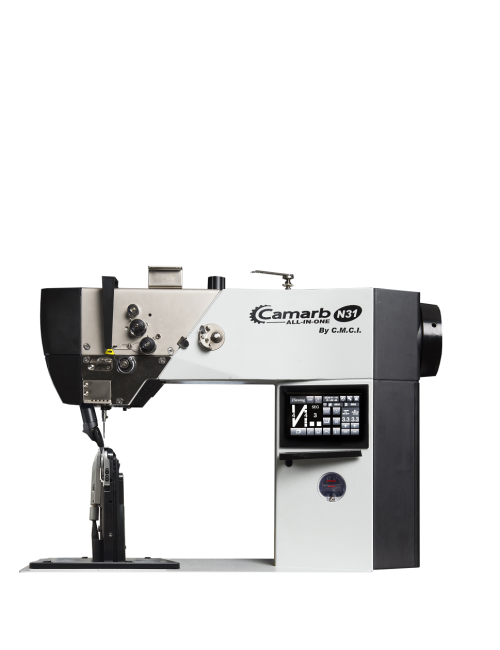

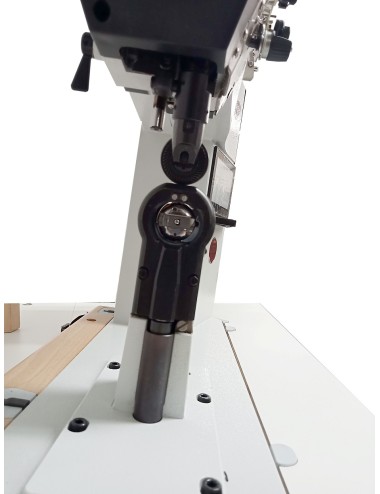

The CAMARB N31-ALL IN ONE-E-C997-CP is a post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Thread trimmer, electric backtracking and electric presser foot lift.

Small Crochet.

Quantity

Add to favorites Add to compare

APPLICATION AREA

Its special needle-feed transport system allows the sewing of difficult materials such as padded items or multi-layer materials, preventing material shifting during the sewing process.

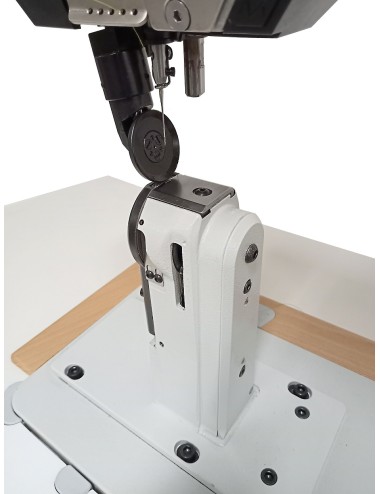

When sewing closed uppers, the right-side post design allows the upper to be freely guided along the left side of the column, a particularly advantageous feature for children's footwear uppers.

The thread trimmer, electronic backtacking and presser foot lift improve productivity and overall working efficiency.

PRODUCT BENEFITS

  • New stepper motors
  • Ergonomic and innovative design with increased operator space and optimal visual comfort for an improved working area

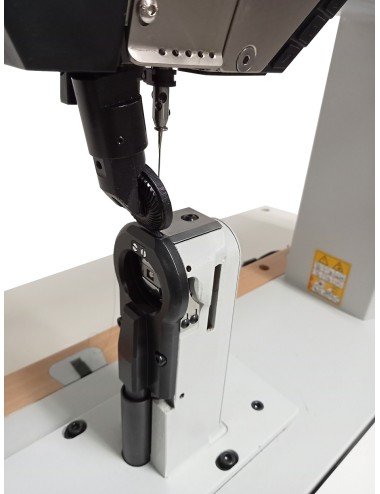

  • Adjustable upper roller presser foot differential feed
  • Increased operational stability
  • Reduced vibration during sewing
  • No needle perforation during initial and final backtacking operations, ensuring improved stitch quality through stepper motor control
  • Consistent stitch length throughout the entire sewing process thanks to stepper motor management
  • Small-capacity hook mounted on horizontal shaft allowing quick bobbin replacement without removing the upper positioned under the dual feeding rollers

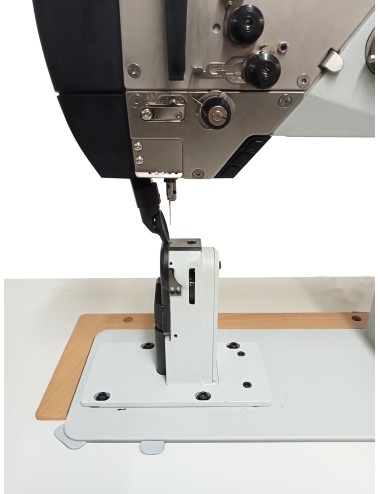

  • Reduced post dimensions allow easy sewing operations on women's and children's uppers during upper assembly phases
  • New thread trimmer, easy to adjust, with short thread trimming system
  • Simplified replacement of wear parts
  • Excellent value for money for both the sewing machine and spare parts
  • Backtacking can be activated automatically by manual lever or control keypad
  • Large touchscreen equipped with versatile and intuitive software for programming seam sections, curves, backtacking operations and stitch length
  • New LED lighting system for the working area, adjustable through the touchscreen
  • Control keypad for backtacking, half stitch and full stitch functions
  • Uniform sewing quality and consistent stitch length on all curve types

TECHNICAL SPECIFICATIONS

  • Max. sewing speed: 2,800 spm (Models A-B)
  • Max. sewing speed: 2,400 spm (Model C)
  • Max. stitch length: 4.5 mm
  • Stitch type: 301
  • Needle system: 134-LR
  • Power supply: 230 V – 50/60 Hz
  • Dimensions: 105 × 55 × 127 cm
  • Weight: 100 kg

Product Details

Camarb N31-ALL IN ONE-E-C997-CP

Data sheet

Functions
1 Needle Sewing
Max sewing speed
2.400 r.p.m. (mod. C)
2.800 r.p.m. (Mod A-B)
Max stitch lenght
4,5 mm
Kind of stitch
301
Needle system
134 L-R
Voltage
230V - 50/60Hz
Dimensions
105x55x127 cm
Weight
100 Kg
New

Download

Scheda Tecnica N31-AIO-E-C997

Download (494.59KB)

Catalogo Camarb N31 serie 997

Download (1.74MB)

Inst. Manual N31-AIO-E-C997-CP

Download (751.94KB)

Instr. Manual N31E-N32E-N33E

Download (7.08MB)

Progr. Manual N31E-N32E-N33E

Download (1.62MB)

Man. Istr. Camarb N31E-N32E-N33E

Download (5.55MB)

Man. Prog. Camarb N31E-N32E-N33E

Download (1.62MB)

Man. Istr. N31-AIO-E-C997-CP

Download (1.01MB)

Cat. Ric. N31-AIO-E-C997-CP-V2

Download (3.96MB)

Quick Compare

Product
 N24-AC-Z F04 CG-VD F04/VD MT05/2 VD
Description

Post-bed sewing machine designed for high-quality zigzag and straight stitching on medium to heavy-duty materials such as leather, synthetic leather and heavy fabrics.

Special post-bed sewing machine for ornamental stitching on welts (leather and leatherboard), capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

Efka motor.

Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

Efka motor.

Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request.

Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing.

The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.
Functions
 Zig Zag 2 Needles 2 Needles 2 Needles
Max sewing speed
 2000 r.p.m. 500 punti/min 500 punti/min 500 punti/min
Max stitch lenght
 5 mm 0-12 mm 0-12 mm 0-8 mm
Lifting amount of presser foot
 8 mm
Needle system
 328-214 x 1 328-214 x 1 328-214 x 2
Voltage
 single-phase V 230 - 50/60 Hz 220V 50/60 Hz 220V 50/60 Hz
Dimensions
 105x55x122 cm
Weight
 85 kg 100 kg 100 kg 130 kg

In the same category

591 591 591
Pfaff

591

Single-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear and leather goods.

Equipped with rotating feed dog transport, roller presser foot, needle feed system and, depending on the version, automatic thread trimmer, automatic backtacking and automatic presser foot lift.

Camarb N21-AIO-CG Camarb N21-AIO-CG Camarb N21-AIO-CG
Camarb

Camarb N21-AIO-CG

Single-needle post-bed sewing machine featuring a servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot.

Equipped with a large-capacity hook and oversized bobbin, thread trimmer, electronic backtacking and electronic presser foot lift.

Camarb N31-AIO-E Camarb N31-AIO-E Camarb N31-AIO-E
Camarb

Camarb N31-AIO-E

The CAMARB N31-ALL-IN-ONE-E (Electronic Version) is a single-needle post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog system and needle-synchronized roller presser foot driven by stepper motors.

Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

Camarb N33-AIO-M Camarb N33-AIO-M Camarb N33-AIO-M
Camarb

Camarb N33-AIO-M

The CAMBAR N33-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, 1-needle, sew and trim, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Thread trimming device, electric backtack and electric presser foot lift.

Camarb N31-AIO-M Camarb N31-AIO-M Camarb N31-AIO-M
Camarb

Camarb N31-AIO-M

The CAMARB N31-ALL-IN-ONE-M (Mechanical Version) is a single-needle mechanical post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog and roller presser foot synchronized with the needle movement by means of bearings.

Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

1591 1591 1591
Pfaff

1591

Electronic single-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear, leather goods and automotive interiors.

Equipped with rotating feed dog transport, roller presser foot, needle feed system, adjustable thread trimmer, automatic backtacking and automatic presser foot lift.

F04/VD
CMCI

F04/VD

Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

Efka motor.

Mtype 888 Mtype 888 Mtype 888
Durkopp Adler

Mtype 888

Single-needle post-bed sewing machine mounted on a table and stand, featuring bottom feed, rotating feed dog, needle feed and synchronized roller presser foot, large hook mounted on a horizontal shaft, thread trimming device, automatic presser foot lift and automatic backtacking.

Also available in a double-needle version.

BF-315 BF-315
CMCI

BF-315

Machine for stitching uppers to cup soles (particularly suitable for children's footwear), featuring needle-feed mechanism with rotary hook.

Optional: Automatic initial and final backtacking and reverse stitching function.

N24-AC-Z N24-AC-Z N24-AC-Z
Camarb

N24-AC-Z

Post-bed sewing machine designed for high-quality zigzag and straight stitching on medium to heavy-duty materials such as leather, synthetic leather and heavy fabrics.

Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E
Camarb

Camarb N31-AIO-CG-E

The CAMARB N31-ALL-IN-ONE-CG-E (Electronic version with Large Hook) is a single-needle post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog system and needle-synchronized roller presser foot driven by stepper motors.

Equipped with a large-capacity hook, thread trimmer, electronic backtacking and electronic presser foot lift.

Camarb N31-AIO-CG-M Camarb N31-AIO-CG-M Camarb N31-AIO-CG-M
Camarb

Camarb N31-AIO-CG-M

The CAMARB N31-ALL-IN-ONE-CG-M (Mechanical Version with Large Hook) is a single-needle post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog and roller presser foot synchronized with the needle movement by means of bearings.

Equipped with a large-capacity hook, thread trimmer, electronic backtacking and electronic presser foot lift.

Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS
Camarb

Camarb N31-AIO-E-C997-CAS

The new Camarb N31-ALL-IN-ONE-E-C997-CAS is an extremely versatile and reliable post bed machine, available in the electronic version equipped with step motors.

Single needle, large vertical hook and in numerous other column configurations for any type of seam need.

Camarb N31-AIO-E-C997-CA Camarb N31-AIO-E-C997-CA Camarb N31-AIO-E-C997-CA
Camarb

Camarb N31-AIO-E-C997-CA

The CAMARB N31-ALL-IN-ONE-E-C997-CA is a special high post-bed sewing machine (413 mm) with servo motor integrated into the sewing head, featuring single needle, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.

Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

Large-capacity hook mounted on a horizontal shaft. The machine also features a recessed post-bed design, allowing versatile operation both for special applications and as a standard post-bed sewing machine.

MT05/2 VD MT05/2 VD
CMCI

MT05/2 VD

Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request.

Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing.

The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.

Camarb N21-AIO Camarb N21-AIO Camarb N21-AIO
Camarb

Camarb N21-AIO

Single-needle post-bed sewing machine with servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot.

Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

You might also like

Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS
Camarb

Camarb N31-AIO-E-C997-CAS

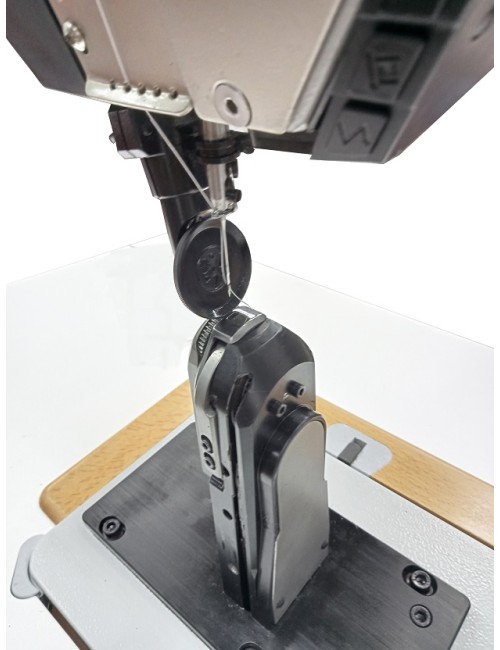

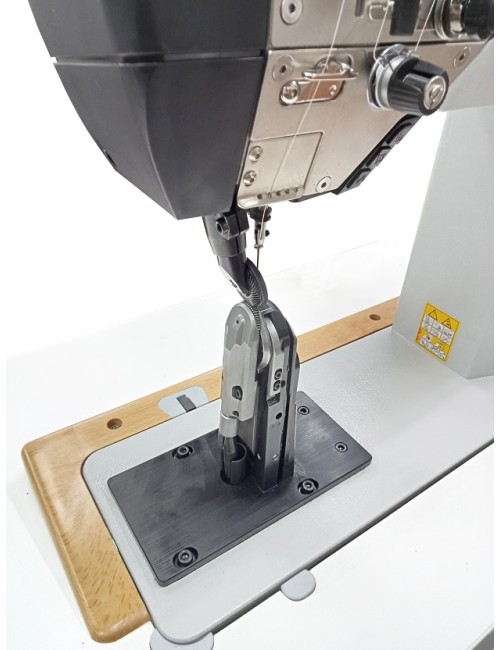

The new Camarb N31-ALL-IN-ONE-E-C997-CAS is an extremely versatile and reliable post bed machine, available in the electronic version equipped with step motors.
