Camarb

Camarb N33-AIO-M

€0.00
Tax included

The CAMBAR N33-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, 1-needle, sew and trim, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Thread trimming device, electric backtack and electric presser foot lift.

Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Stitch type: 301 (double lockstitch)
  • Needle system: 134
  • Clearance under roller presser foot: 7 mm
  • Clearance width: 265 mm
  • Clearance height: 70 mm
  • Post height: 180 mm

    HEAD SECTION DIMENSIONS

    • Length: approx. 620 mm
    • Width: approx. 155 mm
    • Height (above the table): approx. 425 mm
    • Base plate dimensions: 520 × 177 mm
    • Max. sewing speed: 3,000 spm, depending on material, sewing application and stitch length
    • Net head weight: 69 kg
    • Gross head weight: 79 kg

    Product Details

    Camarb N33-AIO-M

    Data sheet

    Functions
    1 needle sewing
    Max sewing speed
    3000 stitches / min depending on the material, processing and stitch length
    Kind of stitch
    301
    Needle system
    134

    Download

    Scheda Tecnica N33-AIO-M

    Scheda Tecnica N33-AIO-M

    Download (202.75KB)

    Man. Progr. N31-N32-N33-AIO-M

    Download (1.53MB)

    Manuale Progr. N31-N32-N33-AIO-M

    Download (1.53MB)

    Cat. Ric. N31M-N32M-N33M

    Download (6.57MB)

    Quick Compare

    Product
    		 N24-AC-Z F04 CG-VD F04/VD MT05/2 VD
    Description

    Post-bed sewing machine designed for high-quality zigzag and straight stitching on medium to heavy-duty materials such as leather, synthetic leather and heavy fabrics.

    Special post-bed sewing machine for ornamental stitching on welts (leather and leatherboard), capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

    Efka motor.

    Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

    Efka motor.

    Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request.

    Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing.

    The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.
    Functions
    		 Zig Zag 2 Needles 2 Needles 2 Needles
    Max sewing speed
    		 2000 r.p.m. 500 punti/min 500 punti/min 500 punti/min
    Max stitch lenght
    		 5 mm 0-12 mm 0-12 mm 0-8 mm
    Lifting amount of presser foot
    		 8 mm
    Needle system
    		 328-214 x 1 328-214 x 1 328-214 x 2
    Voltage
    		 single-phase V 230 - 50/60 Hz 220V 50/60 Hz 220V 50/60 Hz
    Dimensions
    		 105x55x122 cm
    Weight
    		 85 kg 100 kg 100 kg 130 kg

    In the same category

    591 591 591
    Pfaff

    591

    Single-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear and leather goods.

    Equipped with rotating feed dog transport, roller presser foot, needle feed system and, depending on the version, automatic thread trimmer, automatic backtacking and automatic presser foot lift.

    Camarb N31-AIO-M Camarb N31-AIO-M Camarb N31-AIO-M
    Camarb

    Camarb N31-AIO-M

    The CAMARB N31-ALL-IN-ONE-M (Mechanical Version) is a single-needle mechanical post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog and roller presser foot synchronized with the needle movement by means of bearings.

    Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

    Camarb N31-AIO-E-C997-CA Camarb N31-AIO-E-C997-CA Camarb N31-AIO-E-C997-CA
    Camarb

    Camarb N31-AIO-E-C997-CA

    The CAMARB N31-ALL-IN-ONE-E-C997-CA is a special high post-bed sewing machine (413 mm) with servo motor integrated into the sewing head, featuring single needle, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.

    Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

    Large-capacity hook mounted on a horizontal shaft. The machine also features a recessed post-bed design, allowing versatile operation both for special applications and as a standard post-bed sewing machine.

    F04/VD
    CMCI

    F04/VD

    Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system.

    Efka motor.

    Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E
    Camarb

    Camarb N31-AIO-CG-E

    The CAMARB N31-ALL-IN-ONE-CG-E (Electronic version with Large Hook) is a single-needle post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog system and needle-synchronized roller presser foot driven by stepper motors.

    Equipped with a large-capacity hook, thread trimmer, electronic backtacking and electronic presser foot lift.

    BF-315 BF-315
    CMCI

    BF-315

    Machine for stitching uppers to cup soles (particularly suitable for children's footwear), featuring needle-feed mechanism with rotary hook.

    Optional: Automatic initial and final backtacking and reverse stitching function.

    Camarb N21-AIO Camarb N21-AIO Camarb N21-AIO
    Camarb

    Camarb N21-AIO

    Single-needle post-bed sewing machine with servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot.

    Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

    N24-AC-Z N24-AC-Z N24-AC-Z
    Camarb

    N24-AC-Z

    Post-bed sewing machine designed for high-quality zigzag and straight stitching on medium to heavy-duty materials such as leather, synthetic leather and heavy fabrics.

    Mtype 888 Mtype 888 Mtype 888
    Durkopp Adler

    Mtype 888

    Single-needle post-bed sewing machine mounted on a table and stand, featuring bottom feed, rotating feed dog, needle feed and synchronized roller presser foot, large hook mounted on a horizontal shaft, thread trimming device, automatic presser foot lift and automatic backtacking.

    Also available in a double-needle version.

    MT05/2 VD MT05/2 VD
    CMCI

    MT05/2 VD

    Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request.

    Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing.

    The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.

    Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP
    Camarb

    Camarb N31-AIO-E-C997-CP

    The CAMARB N31-ALL IN ONE-E-C997-CP is a post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

    Thread trimmer, electric backtracking and electric presser foot lift.

    Small Crochet.

    1591 1591 1591
    Pfaff

    1591

    Electronic single-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear, leather goods and automotive interiors.

    Equipped with rotating feed dog transport, roller presser foot, needle feed system, adjustable thread trimmer, automatic backtacking and automatic presser foot lift.

    Camarb N31-AIO-E-C997-CS B Camarb N31-AIO-E-C997-CS B Camarb N31-AIO-E-C997-CS B
    Camarb

    Camarb N31-AIO-E-C997-CS B

    The CAMARB N31-ALL-IN-ONE-E-C997-CS-B is an electronic single-needle post-bed sewing machine with integrated servo motor, thread trimmer/backtacking system and synchronized dual rotary feed driven by stepper motors.

    Horizontal-axis hook for driver-type stitching applications and models with heel corner stitching.

    Camarb N33-AIO-E Camarb N33-AIO-E Camarb N33-AIO-E
    Camarb

    Camarb N33-AIO-E

    The CAMARB N33-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, sews and trims, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.

    Thread trimming device, electric backtack and electric foot lift.

    Camarb N21-AIO-CG Camarb N21-AIO-CG Camarb N21-AIO-CG
    Camarb

    Camarb N21-AIO-CG

    Single-needle post-bed sewing machine featuring a servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot.

    Equipped with a large-capacity hook and oversized bobbin, thread trimmer, electronic backtacking and electronic presser foot lift.

    Camarb N31-AIO-E Camarb N31-AIO-E Camarb N31-AIO-E
    Camarb

    Camarb N31-AIO-E

    The CAMARB N31-ALL-IN-ONE-E (Electronic Version) is a single-needle post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog system and needle-synchronized roller presser foot driven by stepper motors.

    Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.

    You might also like

    Spare Parts Camarb...
    Camarb

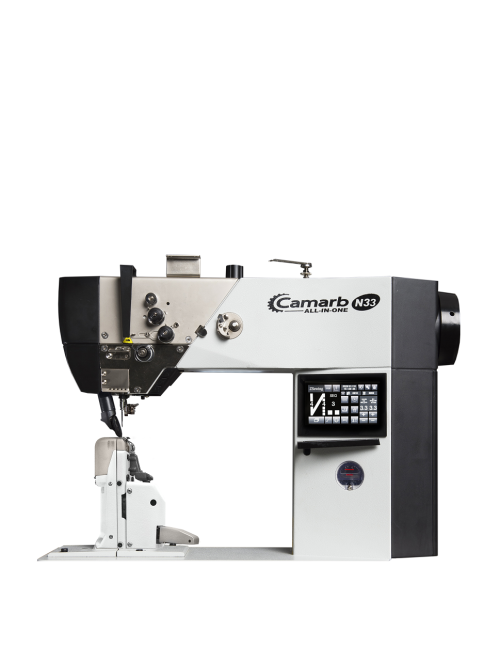

    Spare Parts Camarb N33-AIO-E-V1
