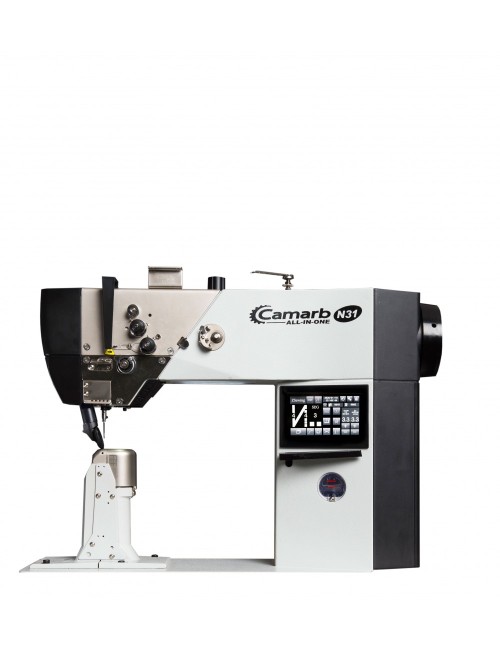

The CAMARB N31-ALL-IN-ONE-E (Electronic Version) is a single-needle post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog system and needle-synchronized roller presser foot driven by stepper motors.
Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.
TECHNICAL SPECIFICATIONS
HEAD SECTION DIMENSIONS
Scheda Tecnica N31-AIO-E
Download (199.15KB)
Product |
N24-AC-Z
|
F04 CG-VD
|
F04/VD
|
MT05/2 VD
|
Description |
Post-bed sewing machine designed for high-quality zigzag and straight stitching on medium to heavy-duty materials such as leather, synthetic leather and heavy fabrics. |
Special post-bed sewing machine for ornamental stitching on welts (leather and leatherboard), capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system. Efka motor. |
Special post-bed sewing machine for ornamental mock-moccasin stitching and leather goods applications, capable of producing various decorative patterns with 1 or 2 needles. Equipped with enlarged oscillating hook, fixed feed dog and presser feet feed system. Efka motor. |
Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request. Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing. The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins. |
Functions |
Zig Zag | 2 Needles | 2 Needles | 2 Needles |
Max sewing speed |
2000 r.p.m. | 500 punti/min | 500 punti/min | 500 punti/min |
Max stitch lenght |
5 mm | 0-12 mm | 0-12 mm | 0-8 mm |
Lifting amount of presser foot |
8 mm | |||
Needle system |
328-214 x 1 | 328-214 x 1 | 328-214 x 2 | |
Voltage |
single-phase V 230 - 50/60 Hz | 220V 50/60 Hz | 220V 50/60 Hz | |
Dimensions |
105x55x122 cm | |||
Weight |
85 kg | 100 kg | 100 kg | 130 kg |
|
|
|
|
|
The new Camarb N31-ALL-IN-ONE-E-C997-CAS is an extremely versatile and reliable post bed machine, available in the electronic version equipped with step motors.
Single needle, large vertical hook and in numerous other column configurations for any type of seam need.
Single-needle post-bed sewing machine with servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot.
Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.
The CAMARB N33-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, sews and trims, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.
Thread trimming device, electric backtack and electric foot lift.
The CAMARB N31-ALL-IN-ONE-CG-E (Electronic version with Large Hook) is a single-needle post-bed sewing machine with servo motor integrated into the sewing head, featuring rotary feed dog system and needle-synchronized roller presser foot driven by stepper motors.
Equipped with a large-capacity hook, thread trimmer, electronic backtacking and electronic presser foot lift.
Electronic single-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear, leather goods and automotive interiors.
Equipped with rotating feed dog transport, roller presser foot, needle feed system, adjustable thread trimmer, automatic backtacking and automatic presser foot lift.
Single-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear and leather goods.
Equipped with rotating feed dog transport, roller presser foot, needle feed system and, depending on the version, automatic thread trimmer, automatic backtacking and automatic presser foot lift.
The CAMBAR N33-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, 1-needle, sew and trim, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.
Thread trimming device, electric backtack and electric presser foot lift.
The CAMARB N31-ALL-IN-ONE-E-C997-CA is a special high post-bed sewing machine (413 mm) with servo motor integrated into the sewing head, featuring single needle, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.
Large-capacity hook mounted on a horizontal shaft. The machine also features a recessed post-bed design, allowing versatile operation both for special applications and as a standard post-bed sewing machine.
The CAMARB N31-ALL IN ONE-E-C997-CP is a post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.
Thread trimmer, electric backtracking and electric presser foot lift.
Small Crochet.
Machine for stitching tubular and non-tubular moccasins, capable of producing various stitch patterns with a single sewing configuration specified upon request.
Available in single-needle or double-needle versions, featuring differentiated feed dogs, manually preset gathering, and variable gathering adjustment by means of a knee lifter during sewing.
The machine is designed to perform 11 different stitching patterns and can also sew fully lasted moccasins.
Single-needle post-bed sewing machine featuring a servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot.
Equipped with a large-capacity hook and oversized bobbin, thread trimmer, electronic backtacking and electronic presser foot lift.
The CAMARB N31-ALL-IN-ONE-E-C997-CS-B is an electronic single-needle post-bed sewing machine with integrated servo motor, thread trimmer/backtacking system and synchronized dual rotary feed driven by stepper motors.
Horizontal-axis hook for driver-type stitching applications and models with heel corner stitching.
