Camarb N24-AE-Z-ECO
Flat-bed zigzag sewing machine featuring jumping feed dog mechanism and manual reverse lever for backtacking at the beginning and end of the seam.
Integrated servo motor.

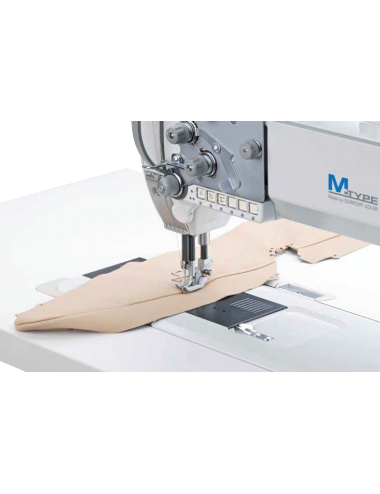

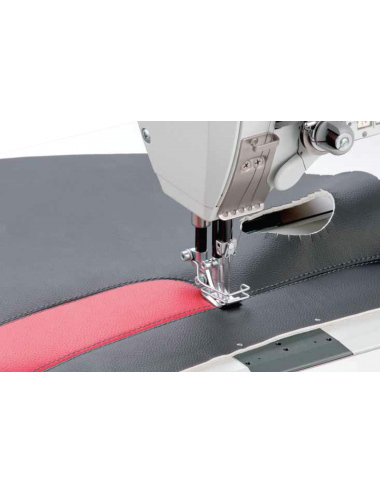

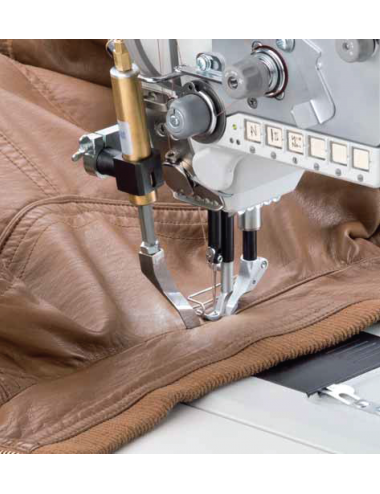

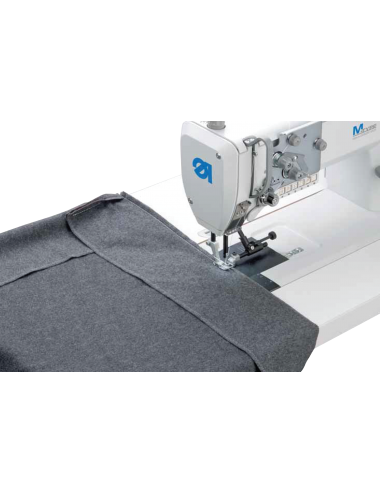

Single-needle flat-bed sewing machine mounted on a table and stand, featuring bottom feed, needle feed and alternating presser feet, large hook mounted on a horizontal shaft, thread trimming device, automatic presser foot lift and automatic backtacking.

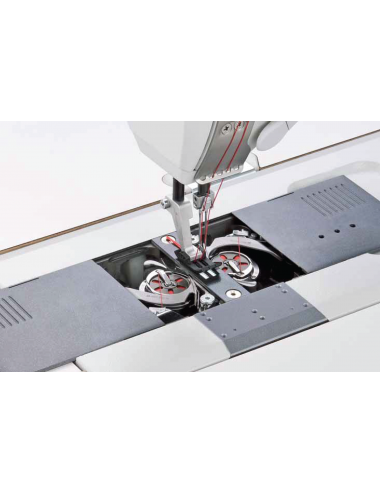

Also available in a double-needle version with independently disengageable needle bars.
TECHNICAL SPECIFICATIONS
Product |
Camarb N25-STR2S
|
N24-AC-Z
|
QUICK MOVE SUPPORT
|
FC05
|
Description |
Thigh performance sewing machine for shoe’s insoles and for other materials such as leather, fur, wool, mutton and fabrics. Rotary feed dog and rear cup drive, chain stitch. Useful for many applications: it is particularly suitable to sew mutton boots but also for nappa, wool, fur, leather and safety shoes. Suitable also for finishing works of some upper’s sections and for the insole’s application to the upper. These two parts are sewed by a flat and elastic stitch, which let to lightly improve the shoe’s outline. |
Post-bed sewing machine designed for high-quality zigzag and straight stitching on medium to heavy-duty materials such as leather, synthetic leather and heavy fabrics. |
New support table with foldable wheels for moving fast. This innovative support system table with foldable wheels, remarkably facilitate the rapid movement of the machine in all those situations where it is required operational flexibility in production chains. |
Machine for stitching various types of soles, equipped with a vertical arm featuring 360° rotation:
|
Functions |
Zig Zag | 1 Needle | ||
Max sewing speed |
2300/min | 2000 r.p.m. | 500 punti/min | |
Max stitch lenght |
3,0 - 6,5 mm | 5 mm | 0-10 mm | |
Kind of stitch |
501 | |||
Lifting amount of presser foot |
8 mm | |||
Needle system |
134 | 4011 o 4035 | ||
Voltage |
monofase V 230 - 50/60 Hz | single-phase V 230 - 50/60 Hz | 220V 50/60 Hz | |
Dimensions |
105x55x110 cm | 105x55x122 cm | ||
Weight |
80 Kg | 85 kg | 125 kg | |
|
|
|
|
|
Flat-bed zigzag sewing machine featuring jumping feed dog mechanism and manual reverse lever for backtacking at the beginning and end of the seam.
Integrated servo motor.
The new Camarb N31-ALL-IN-ONE-E-C997-CAS is an extremely versatile and reliable post bed machine, available in the electronic version equipped with step motors.
Single needle, large vertical hook and in numerous other column configurations for any type of seam need.
Single-needle programmable pattern sewing machine:
Flat-bed zigzag, two-stitch or three-stitch sewing machine with jumping feed dog mechanism, thread trimmer and electronically controlled backtacking for stitch securing at the beginning and end of the seam.
Integrated servo motor.
The CAMARB N32-AIO-DXSX-175-E is a two-needle electronic narrow post-bed sewing machine with 175 mm post height, servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with electronic backtacking and electronic presser foot lift.
The CAMARB N32-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.
Thread trimming device, electric backtack and electric presser foot lift.
The CAMARB N31-ALL-IN-ONE-E-C997-CA is a special high post-bed sewing machine (413 mm) with servo motor integrated into the sewing head, featuring single needle, rotary feed dog and needle-synchronized roller presser foot driven by stepper motors.
Equipped with thread trimmer, electronic backtacking and electronic presser foot lift.
Large-capacity hook mounted on a horizontal shaft. The machine also features a recessed post-bed design, allowing versatile operation both for special applications and as a standard post-bed sewing machine.
The CAMARB N33-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, sews and trims, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.
Thread trimming device, electric backtack and electric foot lift.
Lookstitch, cylinderbed sewing machine with unison feed for working on tubular or for bindings.
Basic model with electric presser foot lifter.
Thigh performance sewing machine for shoe’s insoles and for other materials such as leather, fur, wool, mutton and fabrics.
Rotary feed dog and rear cup drive, chain stitch.
Useful for many applications: it is particularly suitable to sew mutton boots but also for nappa, wool, fur, leather and safety shoes.
Suitable also for finishing works of some upper’s sections and for the insole’s application to the upper.
These two parts are sewed by a flat and elastic stitch, which let to lightly improve the shoe’s outline.
Single-needle post-bed sewing machine featuring a servo motor integrated into the sewing head, rotary feed dog and needle-synchronized roller presser foot.
Equipped with a large-capacity hook and oversized bobbin, thread trimmer, electronic backtacking and electronic presser foot lift.
Single-needle post-bed sewing machine designed for most stitching operations in the production of men's and women's footwear, safety footwear and leather goods.
Equipped with rotating feed dog transport, roller presser foot, needle feed system and, depending on the version, automatic thread trimmer, automatic backtacking and automatic presser foot lift.
Heavy-duty machine designed for stitching insoles to uppers.
Compared with conventional attachment methods, the Strobel stitching process significantly reduces material consumption.
This machine is capable of sewing leather or textile materials up to 7 mm thick.
The gathering device assists in creating fullness while stitching the upper.
Optional equipment (different feed systems and front cups) enables the machine to manufacture children's footwear or process particularly delicate materials.
Kits are also available for cord attachment applications (using cords up to 1.7 mm or up to 2.5 mm in diameter) as well as for California-type footwear construction.
The Camarb N32-AIO-DXSX-175-M is a thin post-bed sewing machine, with raised coloumn at 175 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot.
Electric backtracking and electric presser foot lift.
Flat-bed zigzag sewing machine with jumping feed dog mechanism, thread trimmer and electronically controlled backtacking for stitch securing at the beginning and end of the seam.
Integrated servo motor.
Single-needle flat-bed sewing machine mounted on a table and stand, featuring bottom feed, needle feed and alternating presser feet, large hook mounted on a horizontal shaft, thread trimming device, automatic presser foot lift and automatic backtacking.
Also available in a double-needle version with independently disengageable needle bars.
