Atom

HSP 588/3

€0.00
Tax included

Hydraulic die-cutting machine with moving head and photoelectric safety barrier control system, featuring adjustable stroke up to 150 mm.

Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Working table: 1600 × 500 mm
  • Moving head plate: 500 × 500 mm
  • Maximum power: 25 t
  • Maximum daylight (without cutting pad): 175 mm
  • Pump motor: 1.47 kW
  • Moving head motor: 0.735 kW
  • Moving head lowering speed: 85 mm/sec
  • Moving head travelling speed: 1.07 m/sec
  • Dimensions (L × W × H): 194 × 140 × 211 cm
  • Weight: 1500 kg

Product Details

HSP 588/3

Download

Cat. Ric. ATOM HSP588 1-2-3-5

Download (2.5MB)

Quick Compare

Product
 SE 20C SE 20 SE 22 SE 25C
Description

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.
No features to compare

In the same category

S124C CE
Atom

S124C CE

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

SE 22 SE 22
Atom

SE 22

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

SP 588/3
Atom

SP 588/3

Hydraulic die-cutting machine with moving head and control system equipped with synchronized dual push-buttons during the cutting phase, featuring adjustable stroke up to 100 mm.

HS 588/11
Atom

HS 588/11

Hydraulic die-cutting machine with moving head and photoelectric safety barrier control system, featuring adjustable stroke up to 150 mm and 700 mm photoelectric safety barrier.

S125 S125
Atom

S125

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

SE 20 SE 20
Atom

SE 20

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

S125C S125C
Atom

S125C

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

MF 9.1
Atom

MF 9.1

Hydraulic swing-arm die-cutting machine with “Multiforce” end-stroke system, requiring no cutting force adjustment and allowing immediate transition from small dies to large dies.

S124 CE
Atom

S124 CE

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

S 120 S 120
Atom

S 120

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

HS 588/10 CE
Atom

HS 588/10 CE

Hydraulic die-cutting machine with moving head and photoelectric safety barrier control system, featuring adjustable stroke up to 150 mm to adapt to the thickness of the materials or the number of layers to be cut.

S588/3 S588/3
Atom

S588/3

Hydraulic die-cutting machine with moving head and photoelectric safety barrier control system, featuring adjustable stroke up to 100 mm and 600 mm photoelectric safety barrier.

S120C S120C
Atom

S120C

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

HSP 588/11
Atom

HSP 588/11

Hydraulic die-cutting machine with moving head and photoelectric safety barrier control system, featuring adjustable stroke up to 150 mm.

SE 25C SE 25C
Atom

SE 25C

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

SE 24C SE 24C
Atom

SE 24C

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

You might also like

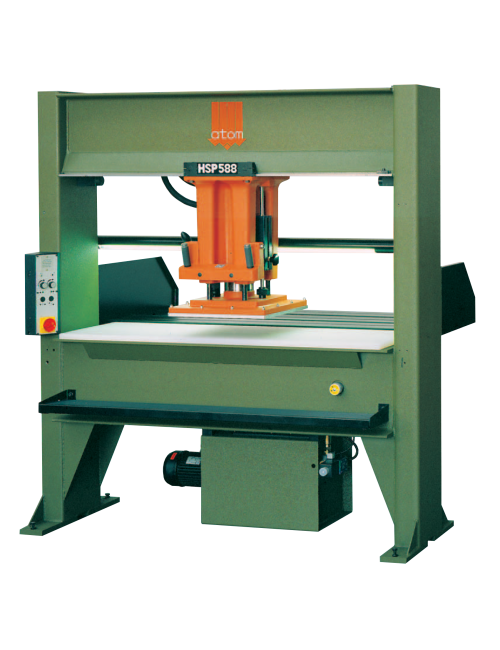

Spare Parts HSP 588/3
