Atom

S 120

€0.00
Tax included

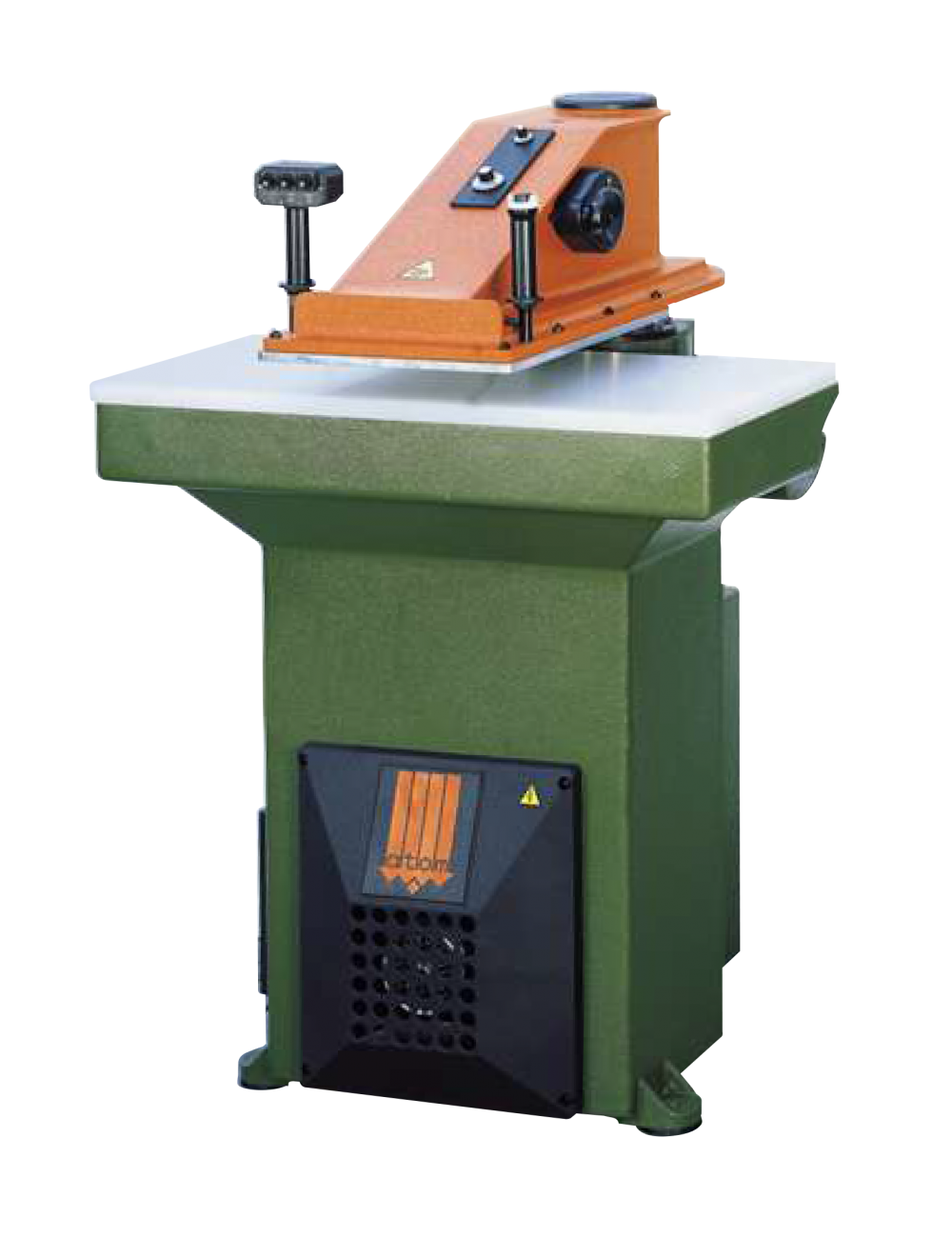

Hydraulic swing-arm die-cutting machine with automatic end-stroke positioning for the use of dies with different heights, equipped with two push-buttons and potentiometer for cutting force adjustment.

Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Working table: 900 × 450 mm
  • Arm length: 370 mm
  • Maximum power: 22 t
  • Maximum stroke: 90 mm
  • Motor power: 0.75 kW
  • Dimensions (L × W × H): approx. 90 × 87 × 140 cm
  • Weight: 630 kg

Product Details

S120

Download

Scheda Tecnica ATOM Serie S-MF

Download (216.82KB)

Catalogo Ricambi ATOM S120

Download (4.65MB)
