Omac

995

€0.00
Tax included

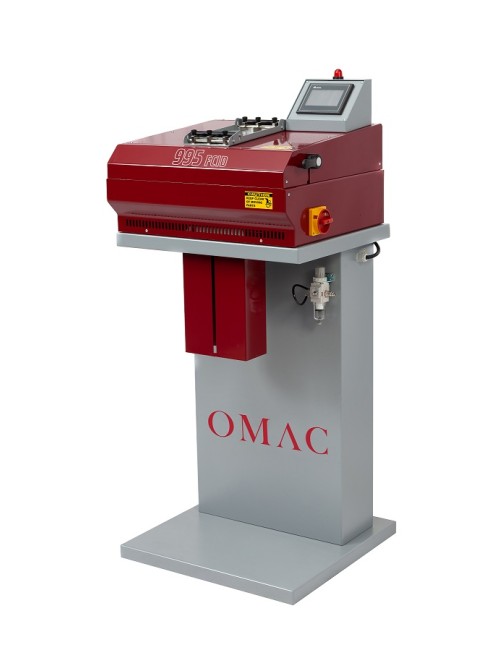

The 995 OMAC is an automatic electronic multicutter used for automatic cutting of different types of material: ribbons, zips, strings, or other.

It is used in the production of leather goods, footwear, ski boots, riding saddles, car seat belts, nautical ropes, backpacks and harness belts, gift packing tapes, zippers and hinges, leashes and collars for animals.

It allows you to cut off any size and number of pieces automatically, even 2 or 3 tapes of the same material simultaneously.

The desired number of cuts can be programmed through the display, which will show the progress of the cuts made.

Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Built-in extraction system
  • Warning light and automatic machine stop when material runs out
  • Display programming for number of cuts, piece length and material feed speed
  • Blade dwell time adjustment for hot cutting operations
  • Maximum material width: 100 mm
  • Cold cutting of 2 or 3 strips of the same material simultaneously
  • Dimensions (L × W × H): 110 × 110 × 165 cm
  • Weight: 130 kg

AVAILABLE VERSIONS

  • 995 F: Straight cold cutting only
  • 995 C: Straight hot cutting only
  • 995 FC: Straight cold and hot cutting with sealing
  • 995 FCID: Straight cold and hot cutting with sealing, plus programmable right- or left-angle hot cutting with sealing in various shapes
  • PLC versions: simplified programming; after selecting the desired cutting mode, all operating parameters can be easily set

Product Details

995

Data sheet

Voltage
380/110/220/240/440 Volt
Dimensions
110x110x165 cm
Weight
130 Kg
Power
250-600 W
Working Pressure
6 BAR

Download

Scheda Tecnica OMAC 995

Download (387.3KB)

Catalogo Ricambi OMAC 995

Download (404.89KB)
