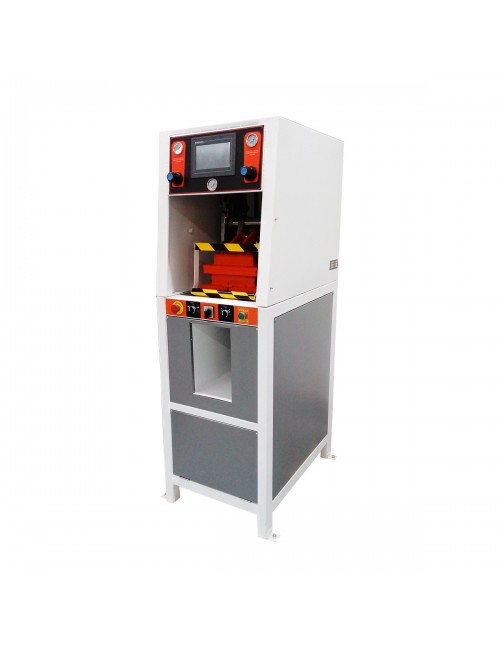

Bramac BR-600-2

Pressa pneumatica con doppia membrana per pressatura di calzature con suole a scatola.

Pneumatic hot press with two working surfaces, suitable for bonding leather with reinforcements or fabrics.

• Control panel for programming the machine cycle and temperature
• Adjustable pressure and carriage stroke
• Heated plate dimensions: 40 × 50 cm
• Max. temperature: 245°C

Pressa per la stampa e la placcatura della pelle dotata di:

• Carrello automatico
• Protezione meccanica o barriera di sicurezza CL4
• Riscaldamento superiore, inferiore o doppio.

Il tempo di pressata è gestito da plc ed il riscaldamento è controllato da un termoregolatore visualizzato.

Press machine for humidifying the upper and reactivating the toe puff before lasting operations.

Humidifying is carried out through the upper press unit, which heats and injects superheated steam onto the upper, while reactivation is performed by the lower presser, which heats the lining and the toe puff.

The machine is equipped with a control panel allowing adjustment of the lower presser temperature (from 100°C to 200°C), steam injection time (from 0 to 9.9 seconds) and total cycle time (from 0 to 99 seconds).

Temperatures are managed and displayed by temperature controllers ensuring absolute precision.

Press for outerwear, heat-transfer applications and leather goods, featuring an air-bladder pressure system with an inflatable rubber membrane and equipped with an electronic control system for pressure, temperature and cycle time.

Pneumatic hot press with two working surfaces, suitable for bonding leather with reinforcements or fabrics.

• Control panel for programming the machine cycle and temperature
• Adjustable pressure and carriage stroke
• Heated plate dimensions: 40 × 60 cm
• Max. temperature: 245°C

Pneumatic hot-stamping and embossing press equipped with an automatic sliding carriage, automatic foil feeding unit for hot stamping widths from 30 to 120 mm, stamping/embossing pressure selector, and electronic temperature control adjustable from 0 to 350°C.

Pressa per adesivi dotata di interruttore magnetotermico e piano in fusione stabile e resistente.

Grazie alla centralina elettronica è possibile controllare la temperatura, il timer (dotato di segnale acustico di avvertimento) e la pressione regolabile da 0 a 250 gr.

Pneumatic bell press with 1 working station, double-membrane support column adjustment and high vacuum system 13 cm.

The SP1 is used for sole attaching operations:

• the first membrane wraps the sole and the shoe (or boot)
• the second membrane perfectly assembles the sole onto the shoe-boot.

The support column moves horizontally, the last holder rotates 180° to facilitate loading of the boot leg, and the pressure of the two membranes is adjustable.

Two-station press machine for humidifying the upper and reactivating the toe puff before lasting operations.

Humidifying is carried out through the upper press unit, which heats and injects superheated steam onto the upper, while reactivation is performed by the lower presser, which heats the lining and the toe puff.

The machine is equipped with a control panel allowing adjustment of the lower presser temperature (from 100°C to 200°C), steam injection time (from 0 to 9.9 seconds) and total cycle time (from 0 to 99 seconds).

Temperatures are managed and displayed by temperature controllers ensuring absolute precision.

Embossing press for silicone or similar materials, equipped with a thermometer, timer and pressure switch, allowing all parameters required for the pressing process to be programmed.

Available in three different versions.

Pressa per fustellare a grande potenza la pelle con barriera di sicurezza CL4 e carrello automatico.

Il ciclo di lavoro è automatico e programmabile, il tempo di pressata è gestito da plc ed il riscaldamento è controllato da un termoregolatore visualizzato.

Pressa oleodinamica con plc, con bacinelle a settori di gomma a piani autosagomabili e piantoni di riscontro calzatura autoadattabili, per applicare ogni tipo di suola, compreso tacco Luigi XV.

Con bacinelle idrauliche con plcu con cuscino gonfiabile.

Hot press for bonding lining, upper and toe puff, essential within a production line, improving component adhesion and facilitating upper lasting through shaping.

• Pressing temperature adjustable through digital thermoregulator
• Complete with table
• Adjustable bonding pressure
• Adjustable upper spreading pressure
• Working temperature: 70° - 80°C
• Possibility to replace cushion and mould
• Heated mould
• Equipped with safety system

Bench-mounted pneumatic press for applying thermoplastic toe puffs to the upper.

Pressing temperatures and times are managed and displayed by temperature controllers and timers, ensuring absolute precision.

Thanks to the installed control panel, it is possible to adjust the presser temperature (from 0°C to 300°C) and the pressing time (from 0 to 99 seconds).

Two-station pneumatic press for toe puff application with automatic locking clamp.

The PP02 is suitable for bonding thermoplastic toe puffs to the upper.

Pressing temperatures and times are managed and displayed by temperature controllers and timers, ensuring absolute precision.

Thanks to the installed control panel, it is possible to adjust the presser temperature (from 0°C to 300°C) and the pressing time (from 0 to 99 seconds).
