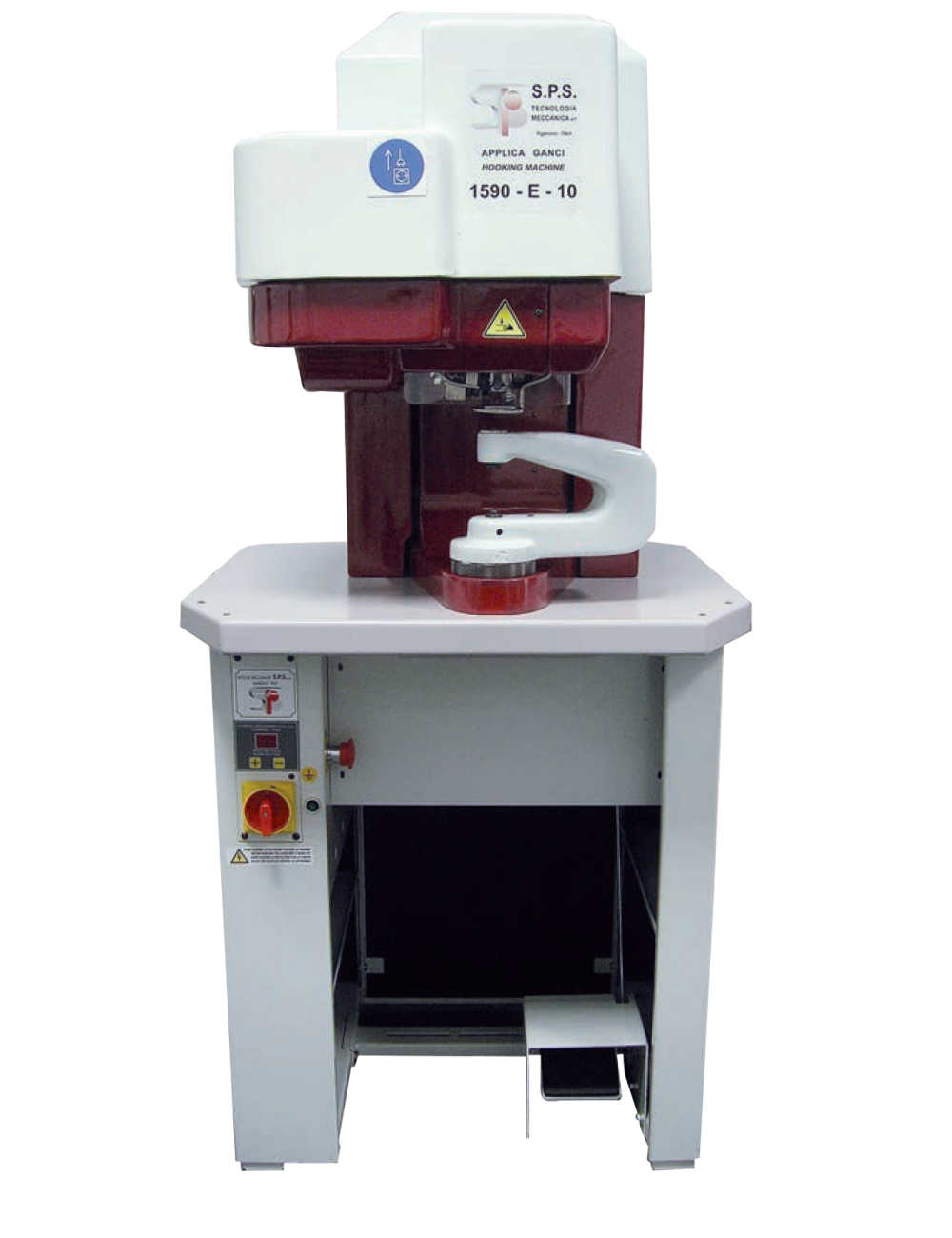

Machine for applying self-piercing hooks with electric motor operation, particularly suitable for the production of sports and accident prevention footwear and for the processing of corsets, orthopedic and other.
The machine is equipped with a power supply to automatically apply self-piercing hooks and a swiveling elbow arm to allow hooks to be applied even in difficult positions.
The clinching of the hook on the die can be round or star.
The machine can be supplied on request with a straight vertical support, instead of an elbow arm and an optical projector for centering the application point.
The action of the machine takes place through an electronic control unit and when it is not in the application phase, the consumption of electricity is zero.
Technical Features
Compressore rotativo a vite coassiale senza ingranaggi.
Disponibile anche su serbatoio da 500 litri, con e senza essiccatore e velocità variabile, con potenze da 11 a 15 kW e rumorosità compresa tra 65 e 68 dB(A).
Premonta-monta computerizzata, oleodinamica e interamente programmabile tramite un display touch screen da 12" a colori, multilingua con funzioni di autodiagnostica. Cambio della forma nella lavorazione in meno di 2 minuti.
Apparecchiature di serie: 9 pinze indipendenti, proiettore ottico, piastroni mobili, corsa piastre motorizzata e timers per la regolazione dell'apertura pinze, pinze girevoli e apribili, gruppo teflon avvolgi punte, gruppo SZ per il montaggio del raccordo fianco-cava, pressori laterali,sistema di incollaggio a tracciatori, tiraggio automatico differenziato su tre gruppi di pinze, destro sinistro mazzetta pressore posteriore, disposizione pinze motorizzata e programmabile, pistoncini teflon supplementari e display touch screen 12".
Macchina spaccatrice luce 420 mm.
The instrument is used for the application of any kind of thermo-adhesive items (crystal stones, cabochon, half pearls, studs) in different shapes.
It is provided with an interchangeable heating metal point.
A thermo-regulator allows to vary the metal point temperature and to adjust it according to the item size.
The crystal stone or the stud is vacuum positioned.
A special vacuum-generating pump is located inside the instrument and is activated by the operator when he closes the handle hole.
The BR-02-ALL-IN-ONE-Q table is a jointing bench equipped with a Quick Move support with retractable wheels and a drawer with accessories.
Supplied with plates for water and solvent based gluing, stainless steel plate for punching, marble top for typing standard components, insert for typing boots, LED bar, drawer with organizer and a lower shelf for housing the glue tank.
In this version there are two arrangements for connection to the extraction system.
Complete with BR-401 gluing device (water-based glue gun + glue tank).
The BR-02-ALL-IN-ONE-Q-PLUS table is a jointing bench equipped with Quick Move support, suitable for gluing water-based and solvent-based Hot Melt glues, equipped with different types of grids, bulkheads, and support surfaces for the adhesive tanks, drawer containing die holder handles, dies, ruler and hammer, scissors and sponge.
Electric columns are present for adjusting the working position (sitting/standing) from 79 cm to 120 cm.
Complete with BR-401 gluing device (precision gluing gun + glue tank).
In this version there are two arrangements for connection to the extraction system.
Macchina spaccatrice luce 420 mm.
Machine for applying self-piercing hooks with electric motor operation, particularly suitable for the production of sports and accident prevention footwear and for the processing of corsets, orthopedic and other.
The machine is equipped with a power supply to automatically apply self-piercing hooks and a swiveling elbow arm to allow hooks to be applied even in difficult positions.
The clinching of the hook on the die can be round or star.
The machine can be supplied on request with a straight vertical support, instead of an elbow arm and an optical projector for centering the application point.
The action of the machine takes place through an electronic control unit and when it is not in the application phase, the consumption of electricity is zero.
