STAMPATREDDI Flexible Solutions

Bramac FLEXMED F35

Tax included

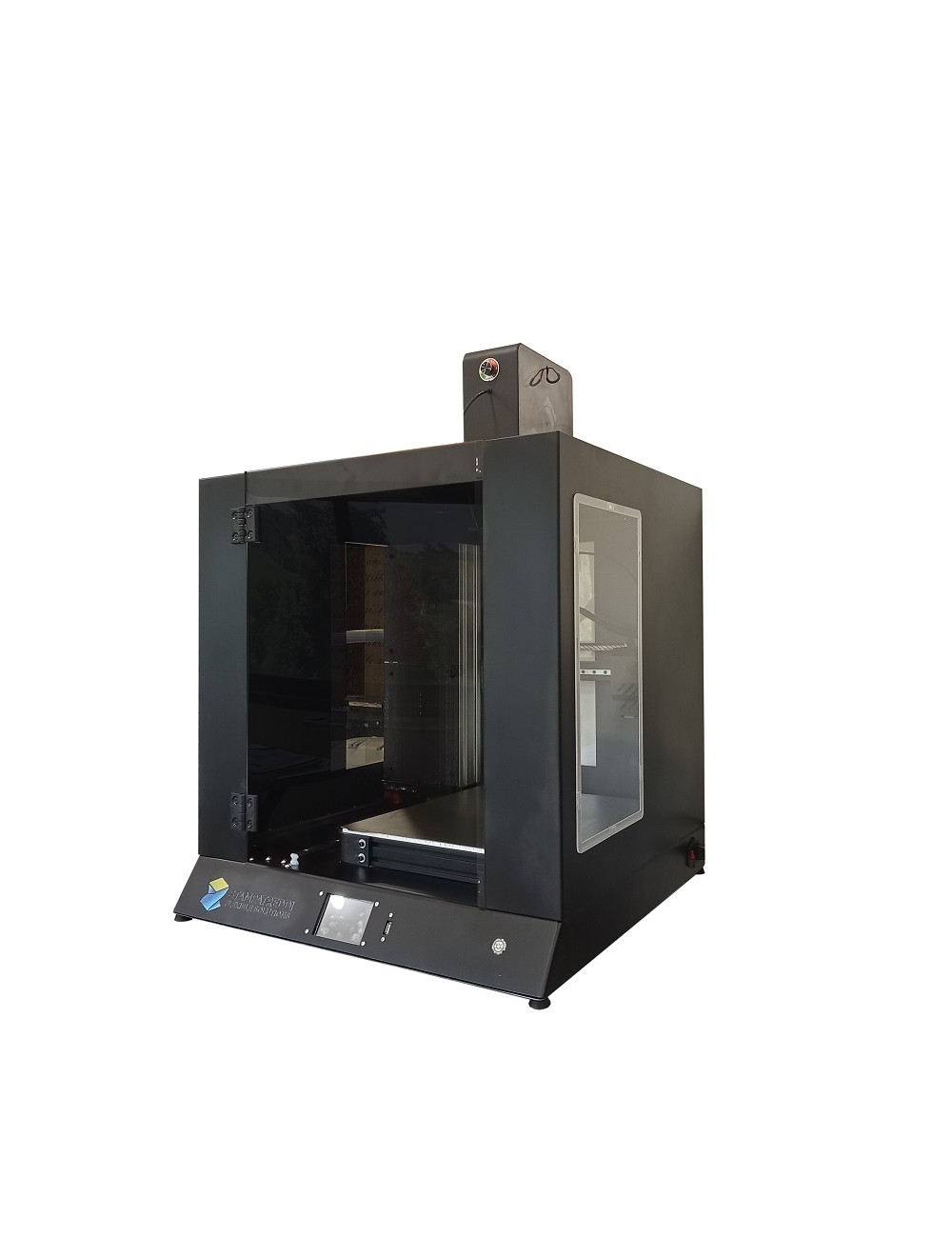

FLEXMED F35 is the latest generation 4.0 3D printer produced in Italy by STAMPATREDDI Flexible Solutions and marketed in collaboration with BRAMAC S.R.L.

A printer for professionals in the sector, extremely easy and versatile to use.

It offers the best print quality in its class and can print with a wide range of materials.



  • Working Area: 300X350X300 mm (versione std) - 300X350X520 (versione XL)
  • Filament diameter: 1,75 mm
  • X-Y-Z Axis movement on trapezoidal screw and Hiwin guide (very hight precision)
  • 32 bit motherboard and 1/128 step drive SILENT
  • Filament and sensor
  • Remote managment system 4.0 programmed self-shutdown
  • Extruder up to 350° (3 types available)
  • Jet 0.4mm (std version) optional 0,2 mm - 0,3 mm - 0,5 mm - 0,6 mm - 0,8 mm
  • Heated part 220V 750W up to a 160°
  • Ground aluminium print base (optiona lokbuild mat)
  • Voltage 24 V


  • Heating cartridge 24V 40W (std version) - 24V 50W (extruder type C temperature up to 350°C)
  • ntc100k senson in stainless steel - Thermal barrier in aisi 304 (std version) titanium (extruder type C)
  • Extruder cooling fan 24V 40X40X10 mm
  • Filament cooling fan turbofan 24V
  • Printing accuracy 0.03 mm
  • Support jet 0,3 mm/0,5 mm/0,6 mm/0,8 mm (dafault 0,4 mm copper)
  • Extruder Type A: PCL, CERA, PA 12, FILAMENTI MEDICALI fino A 245°C
  • Extruder Type B: PLA, PET, NYLON, WOOD, TPU, TPE, TPC, PC-BBT fino a 250°C
  • Extruder Type C: TECH FILAMENT, ABS, PC, PEC, PC-PBTFC, CARBON, PPS fino a 350°C
  • Jets in copper+nickel, stainless steel, hardener steel nozzles

Product Details


Data sheet

300X350X300 mm versione STD
300x350x520 mm versione XL


Scheda Tecnica FLEXMED F35

Download (351.16KB)
