Camarb

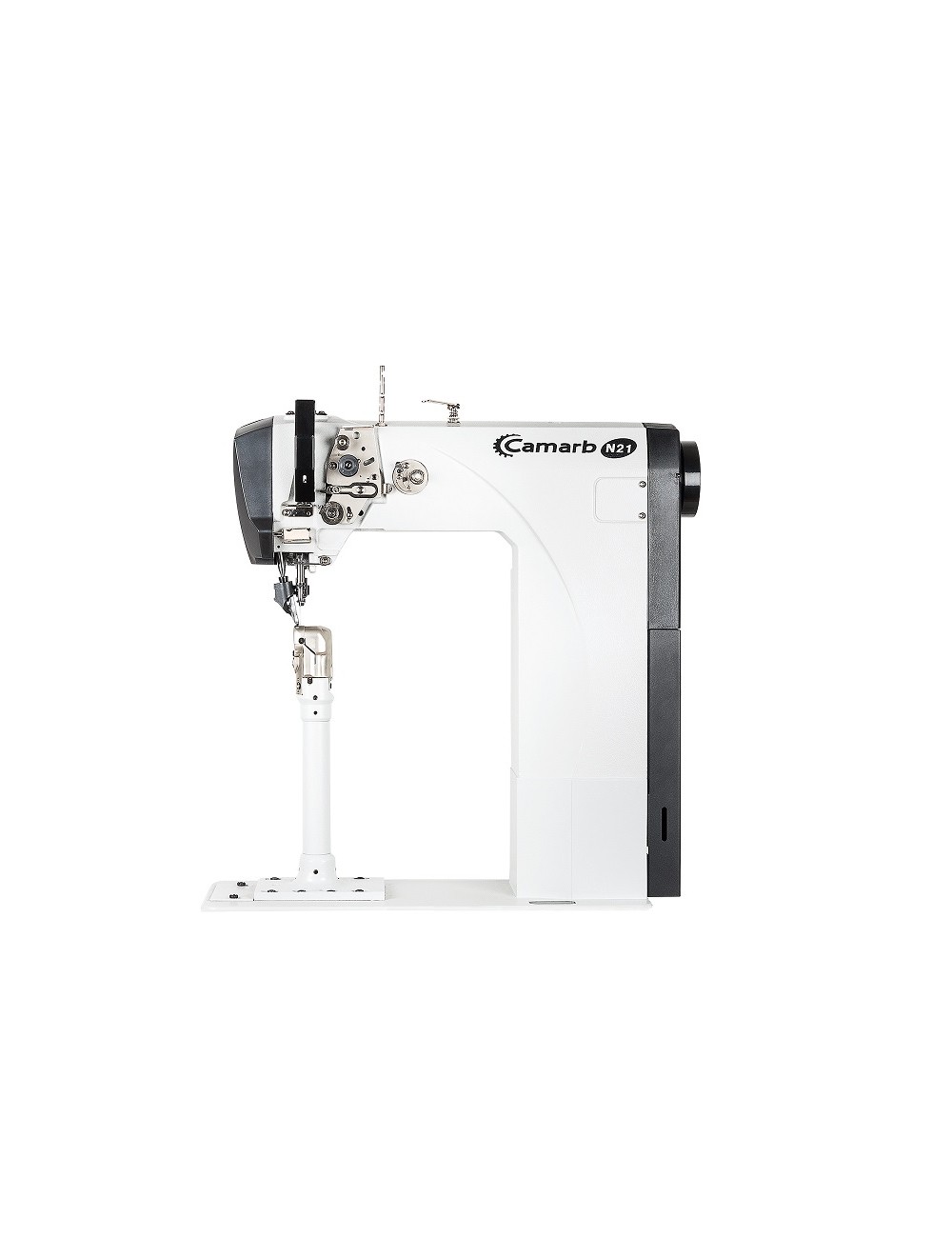

Camarb N21-ALL-IN-ONE-DX-310

€0.00
Tax included

Thin post-bed sewing machine with raised coloumn at 310 mm:

  • Servo motor integrated in the sewing head
  • Single needle
  • Wheel feed
  • Needle feed and driven roller presser
Quantity

TECHNINCAL DATA

  • Max sewing speed: 2.200 r.p.m
  • Stitch lenght: 4,0 mm
  • Kind of stitch: 301+
  • Lifting amount of presser foot: 7 mm
  • Needle system: 134-LR
  • Voltage: 230 V - 50/60Hz
  • Dimensions: 105x55x127 cm
  • Weight: 105 kg

Product Details

Camarb N21-ALL-IN-ONE-DX-310

Data sheet

Functions
1 Needle
Max sewing speed

2.200 r.p.m.
Max stitch lenght
4,0 mm
Kind of stitch
301
Lifting amount of presser foot
7 mm
Needle system
34-LR
Voltage
230 V - 50/60Hz
Dimensions
105x55x127 cm
Weight
98 kg

Download

Scheda Tecnica N21-AIO-DX-SX-310

Scheda Tecnica N21-AIO-DX-SX-310

Download (172.83KB)

Quick Compare

Product
Camarb N21-AR-CV-DX-420-SIR-E N24-AC-Z F04 CG-VD F04/VD
Description

High post-bed sewing machine, single needle, with raised coloumn at 42 cm, roller press foot feeding and rotary lower feed dog synchronized by a stepper motor through the needle bar shifting.

Assembled hook on horizontal shaft and increased bobbin, thread trimmer, electronic driven control for presser foot lifting and for initial an final backtracking.

Zig-zag post-bed sewing machine for medium-heavy materials as leather, artificial leather, heavy clothes etc.

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Functions
Zig Zag 2 Needles 2 Needles
Max sewing speed
Versione C 2.500 s.p.m 2000 r.p.m. 500 punti/min 500 punti/min
Max stitch lenght
3,5 mm 5 mm 0-12 mm 0-12 mm
Kind of stitch
301
Lifting amount of presser foot
8 mm
Needle system
134 328-214 x 1 328-214 x 1
Voltage
monofase V 230 - 50/60 Hz single-phase V 230 - 50/60 Hz 220V 50/60 Hz
Dimensions
105x55x122 cm 105x55x122 cm
Weight
140 85 kg 100 kg 100 kg
