Camarb

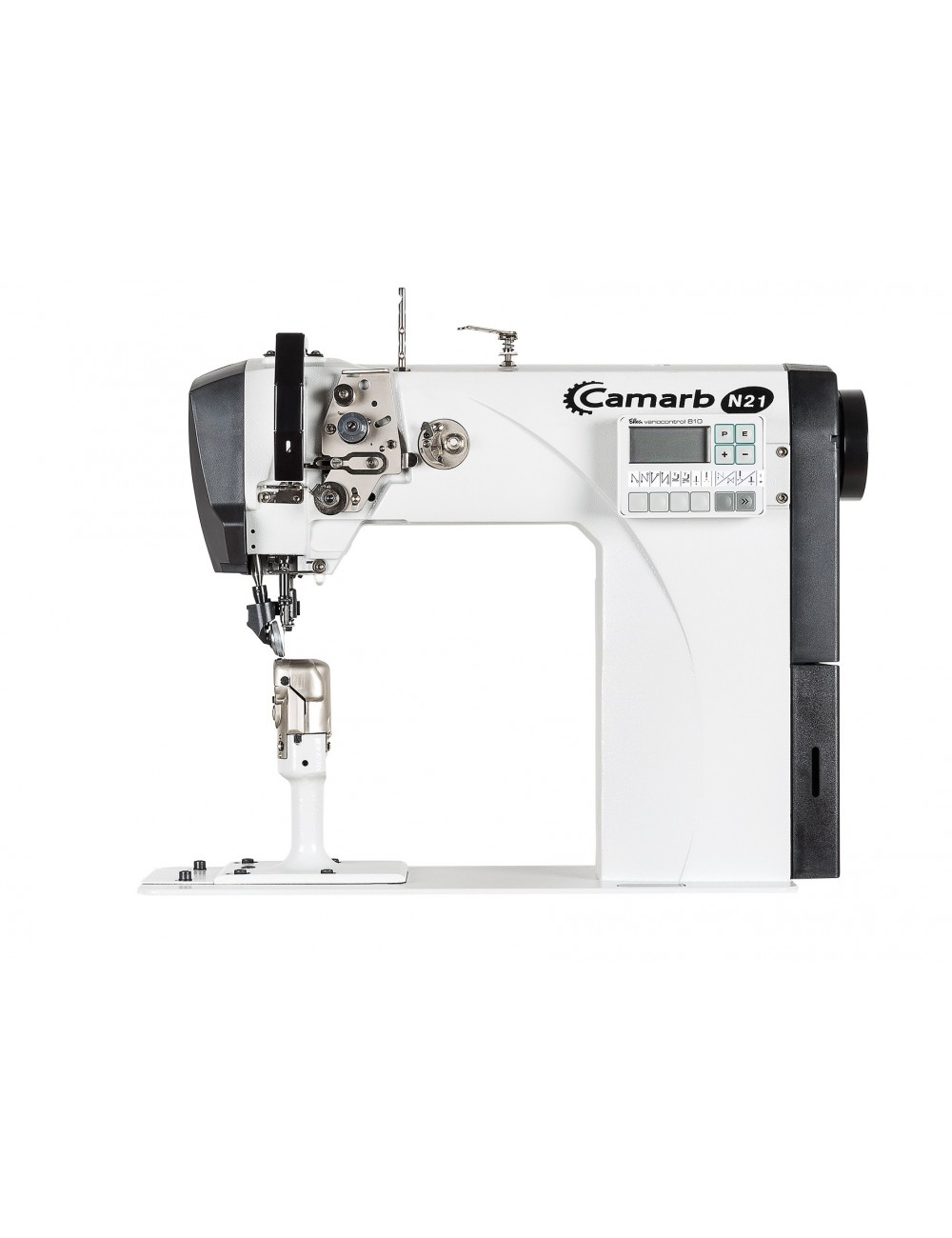

Camarb N21-ALL-IN-ONE-DX-175

€0.00
Tax included

Thin post-bed lockstitch sewing machine (175 mm) with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot.

Thread trimmer, electric backtracking and electric presser foot lift.

Quantity

APPLICATION AREA

The N21-ALL-IN-ONE-DX-175 is suitable for the side stitching of derby shoes, for the application of outside counters on uppers and for the stitching of vamps on the upperquarters of oxford footwears.

Its continuos synchronic mechanism of wheel feed, needle feed and driven roller presser, makes materials driving considerably easier.

PRODUCT ADVANTAGES

  • The reduced size of the post-bed allows to sew tight uppers, that would be very hard to sew with standard post-beds
  • The new servo drive integrated in the sewing head can guarantee a better workstation’s ergonomics
  • 60% energy saving
  • Higher stability during work-cycle steps
  • Less vibrations during the sewing process
  • Improved backtracking quality on first and last stitches with costant stitch lenght during all sewing time
  • Backtracking can be activated manually through the hand lever
  • New thread trimmer, easy to adjust, with short threads cutting system
  • Easy replacement for wearing parts
  • Excellent quality-price ratio for the sewing machine and the spare parts

TECHNICAL DATA

  • Max sewing speed: 2.200 r.p.m.
  • Max stitch lenght: 4,0 mm
  • Kind of stitch: 301
  • Lifting amount of presser foot: 7 mm
  • Needle system: 34-LR
  • Voltage: 230 V - 50/60Hz
  • Dimensions: 105x55x127 cm
  • Weight: 98 kg

Product Details

N21-ALL-IN-ONE-DX-175

Data sheet

Functions
1 Needle
Max sewing speed
2.200 r.p.m.
Max stitch lenght
4,0 mm
Kind of stitch
301
Lifting amount of presser foot
7 mm
Needle system
34-LR
Voltage
230 V - 50/60Hz
Dimensions
105x55x127 cm
Weight
98 kg

Download

Scheda Tecnica N21-AIO-DX-SX-175

Scheda Tecnica N21-AIO-DX-SX-175

Download (586.91KB)
