Camarb

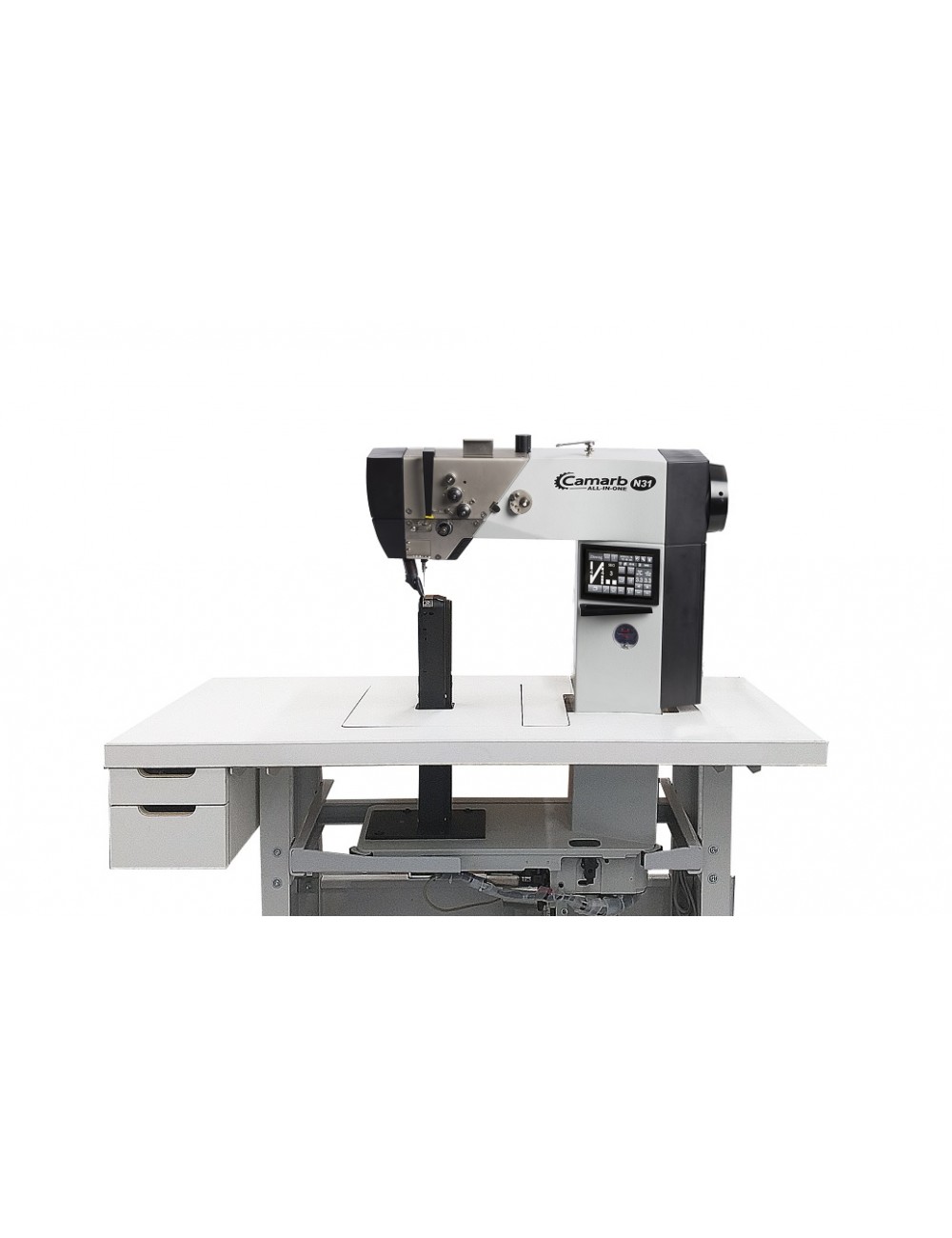

Camarb N31-AIO-DX-420-M

€0.00
Tax included

High post-bed sewing machine, single needle, with raised coloumn at 42 cm, roller press foot feeding and rotary lower feed dog synchronized by a stepper motor through the needle bar shifting.

Assembled hook on horizontal shaft and increased bobbin, thread trimmer, electronic driven control for presser foot lifting and for initial an final backtracking.

Quantity

APPLICATION AREA

It’s special needle-moving system allows to sew difficult materials such as padded multi-layer materials, avoiding them from slipping.

When sewing closed uppers, the right post-bed allows to move the upper on the left side of the post-bed, feature for child's uppers.

The thread trimmer, the backtracking and the presser foot lifter make the working progress more efficient.

PRODUCT ADVANTAGES

  • The 42 cm coloumn is suitable for boots sewing
  • Table equipped with a removable section which allows the correct boot positioning on the coloumn
  • New stepper motors
  • Ergonomic and innovative design with more spaces for the operator and optimal visual comfort for a better work area
  • Roller press foot feeding control system
  • Higher stability during work-cycle steps/Less vibrations during the sewing process
  • No perforation during the backtracking of the starting and ending points, with better quality of points thanks to the stepper motors
  • Constant stitch length for the entire seam thanks to the step motors
  • Assembled hook on horizontal shaft to allow a rapid bobbin extraction without upper dislodging betwixt the two transport whells
  • The reduced dimensions of the column allow, during the upper assembling step, to make seams easier on woman and child upper
  • New thread trimmer, easy to adjust, with short threads cutting sistem
  • Easy replacement for wearing parts
  • Excellent quality-price ratio for the sewing machine and the parts
  • Automatic backtack activated by manual lever or push button
  • Large touch equipped with a versatile and intuitive software for programming seam sides, curves, backtacks and stitch length
  • New LED lighting in the work area adjustable via touch
  • Control keypad, backtack, half stitch and full stitch
  • Homogeneous seam with the same length of the stitches in the ant kind of curve

TECHNICAL DATA

  • Max sewing speed: 2.000 r.p.m.
  • Max stitch length: 5,0 mm
  • Kind of stitch: 301
  • Lifting amount of presser foot: 7 mm
  • Needle system: 134-LR
  • Voltage: 230 V - 50/60Hz
  • Dimensions: 105x55x127 cm
  • Weight: 140 kg

Product Details

Camarb N31-AIO-DX-420-M

Data sheet

Functions
1 Needle Sewing
Max sewing speed
2.000 r.p.m.
Max stitch lenght
5,0 mm
Kind of stitch
301
Lifting amount of presser foot
7 mm
Needle system
134-LR
Voltage
230 V - 50/60Hz
Dimensions
105x55x127 cm
Weight
140 kg

Download

Scheda Tecnica N31-AIO-DX-420-M

Download (301.29KB)

Man. Progr. N31-N32-N33-AIO-M

Download (1.53MB)
