Camarb N31-AIO-DX-310-E

€0.00
Tax included

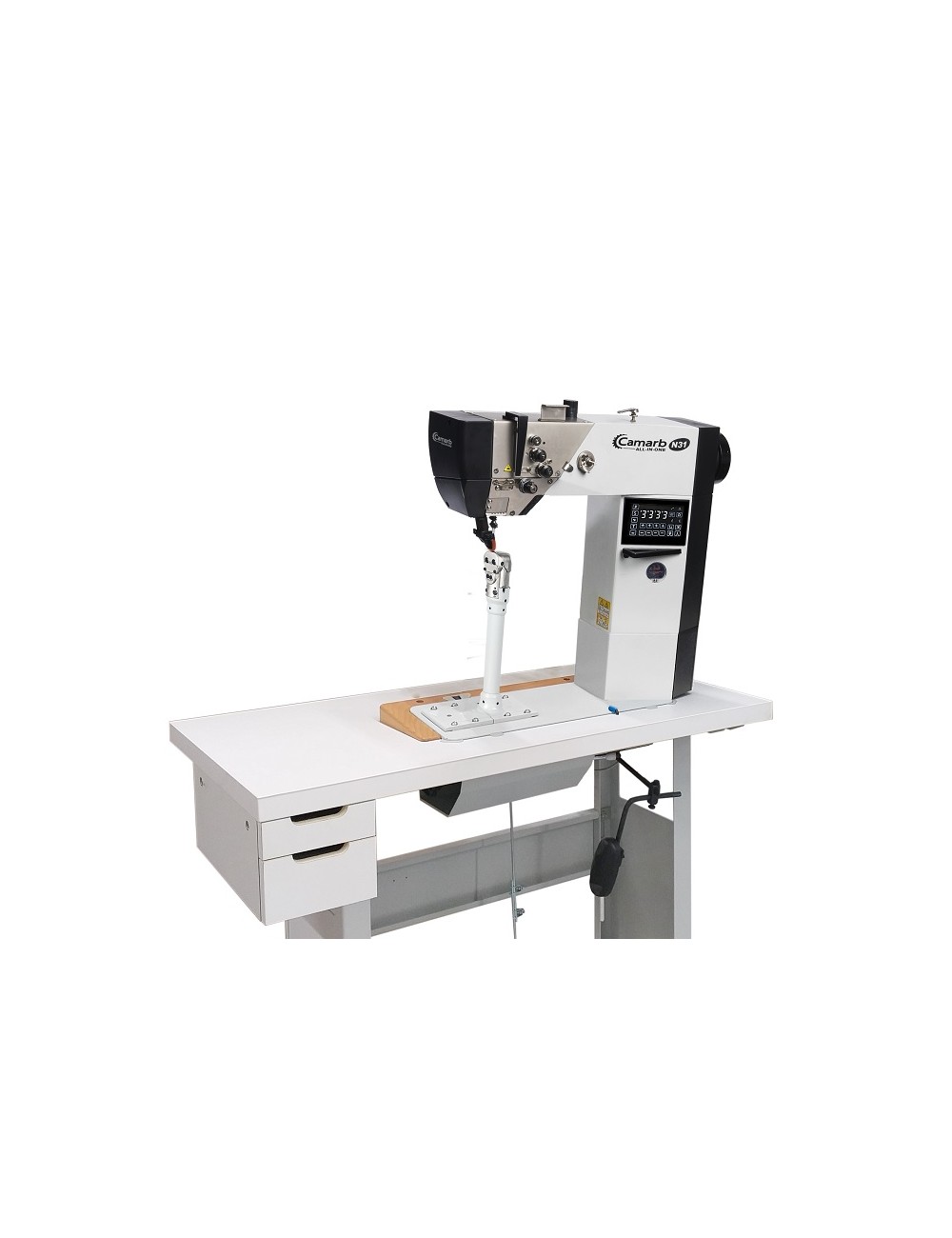

Thin post-bed electronics sewing machine with raised coloumn at 310 mm with servo motor integrated in the sewing head,single needle,rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Electric backtracking and electric presser foot lift.

Quantity

APPLICATION AREA

The N31-AIO-DX-310-E is suitable for the side stitching of derby shoes, for the application of outside counters on uppers and for the stitching of vamps on the upperquarters of oxford footwears.

Its continuos synchronic mechanism of wheel feed, needle feed and driven roller presser, makes materials driving considerably easier. same length of the stitches in the ant kind of curve.

PRODUCT ADVANTAGES

  • The reduced size of the post-bed allows to sew tight uppers, that would be very hard to sew with standard post-beds
  • New stepper motors
  • Ergonomic and innovative design with more spaces for the operator and optimal visual comfort for a better work area
  • Roller press foot feeding control system
  • Higher stability during work-cycle steps/Less vibrations during the sewing process
  • No perforation during the backtracking of the starting and ending points, with better quality of points thanks to the stepper motors
  • Constant stitch length for the entire seam thanks to the step motors
  • Excellent quality-price ratio for the sewing machine and the parts
  • Easy replacement for wearing parts
  • Automatic backtack activated by manual lever or push button
  • Large touch equipped with a versatile and intuitive software for programming seam sides, curves, backtacks and stitch length
  • New LED lighting in the work area adjustable via touch
  • Control keypad, backtack, half stitch and full stitch
  • Homogeneous seam with the same length of the stitches in the ant kind of curve

TECHNICAL DATA

  • Max sewing speed: 2.800 r.p.m. (mod. A-B)
  • Max sewing speed: 2.400 r.p.m. (mod. C)
  • Max stitch length: 5,0 mm
  • Kind of stitch: 301
  • Lifting amount of presser foot: 7 mm
  • Needle system: 134-LR
  • Voltage: 230 V - 50/60Hz
  • Dimensions: 105x55x127 cm
  • Net Weight: 100 kg

Product Details

Camarb N31-AIO-DX-310-E

Data sheet

Functions
1 Needle Sewing
Max sewing speed
2.400 r.p.m. (mod. C)
2.800 r.p.m. (mod. A-B)
Max stitch lenght
5,0 mm
Kind of stitch
301
Lifting amount of presser foot
7 mm
Needle system
134-LR
Voltage
230 V - 50/60Hz
Dimensions
105x55x127 cm
Weight
100 kg

Download

Scheda Tecnica N31-AIO-DX-310-E

Download (222.56KB)

Quick Compare

Product
Camarb N21-AR-CV-DX-420-SIR-E N24-AC-Z F04 CG-VD F04/VD
Description

High post-bed sewing machine, single needle, with raised coloumn at 42 cm, roller press foot feeding and rotary lower feed dog synchronized by a stepper motor through the needle bar shifting.

Assembled hook on horizontal shaft and increased bobbin, thread trimmer, electronic driven control for presser foot lifting and for initial an final backtracking.

Zig-zag post-bed sewing machine for medium-heavy materials as leather, artificial leather, heavy clothes etc.

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Functions
Zig Zag 2 Needles 2 Needles
Max sewing speed
Versione C 2.500 s.p.m 2000 r.p.m. 500 punti/min 500 punti/min
Max stitch lenght
3,5 mm 5 mm 0-12 mm 0-12 mm
Kind of stitch
301
Lifting amount of presser foot
8 mm
Needle system
134 328-214 x 1 328-214 x 1
Voltage
monofase V 230 - 50/60 Hz single-phase V 230 - 50/60 Hz 220V 50/60 Hz
Dimensions
105x55x122 cm 105x55x122 cm
Weight
140 85 kg 100 kg 100 kg
