Camarb

Camarb N21-AR-CV-DX-420-SIR-E

€0.00
Tax included

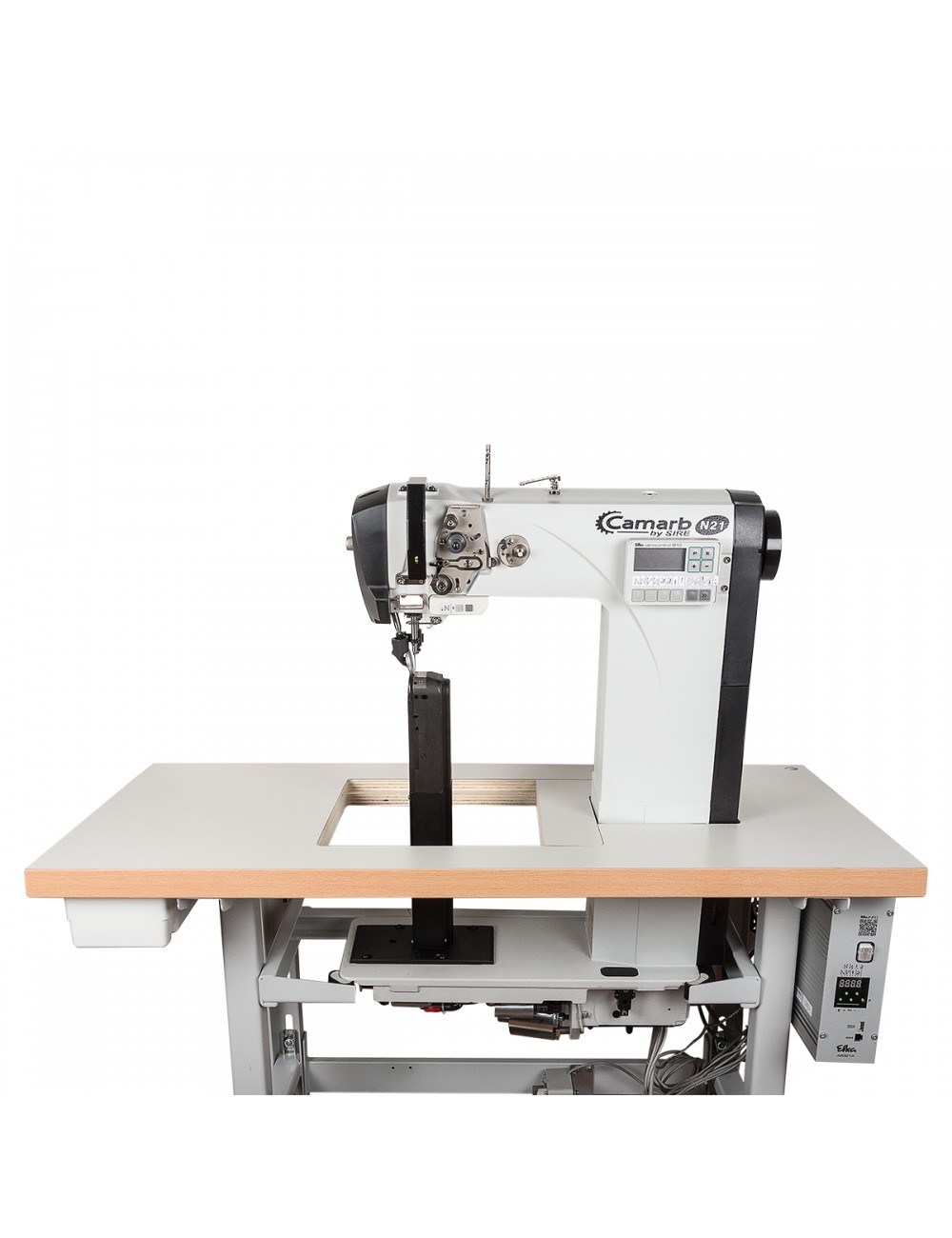

High post-bed sewing machine, single needle, with raised coloumn at 42 cm, roller press foot feeding and rotary lower feed dog synchronized by a stepper motor through the needle bar shifting.

Assembled hook on horizontal shaft and increased bobbin, thread trimmer, electronic driven control for presser foot lifting and for initial an final backtracking.

Quantity

APPLICATION AREA

It’s special needle-moving system allows to sew difficult materials such as padded items or multi-layer materials, avoiding them from slipping.

When sewing closed uppers, the right post-bed allows to move the upper on the left side of the post-bed, advantageous feature for child's uppers.

The thread trimmer, the backtracking and the presser foot lifter make the working progress more efficient.

PRODUCT ADVANTAGES

  • The 42 cm coloumn is suitable for boots sewing
  • Table equipped with a removable section which allows the correct boot positioning on the coloumn
  • Hook assembled on horizontal shaft to allow a quick bobbin extraction with no need to take out the upper
  • Roller press foot feeding control system
  • Improved backtraking quality on first and last stitches
  • 50% increase of the thread bobbin
  • New thread trimmer, easy to adjust, with short threads cutting system
  • Excellent quality-price ratio for the sewing machine and the spare parts
  • Better ergonomics of the working area thanks to the new motor

TECHNICAL DATA

  • Max sewing speed: 2.000 r.p.m
  • Max stitch lenght: 3,5 mm
  • Kind of stitch: 301
  • Lifting amount of presser foot: 7 mm
  • Needle system: 134-LR
  • Voltage: 230 V - 50/60Hz
  • Dimensions: 105x55x127 cm
  • Weight: 140 kg

Product Details

Camarb N21-AR-CV-DX-420-SIR-E

Data sheet

Functions
Max sewing speed
Versione A/B 3.200 s.p.m
Versione C 2.500 s.p.m
Max stitch lenght
3,5 mm
Kind of stitch
301
Needle system
134
Voltage
monofase V 230 - 50/60 Hz
Dimensions
105x55x122 cm
Weight
140

Download

Scheda Tec N21-AR-CV-DX420-SIR-E

Download (325.48KB)

Quick Compare

Product
N24-AC-Z F04 CG-VD F04/VD MT05/2 VD
Description

Zig-zag post-bed sewing machine for medium-heavy materials as leather, artificial leather, heavy clothes etc.

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.

Functions
Zig Zag 2 Needles 2 Needles 2 Needles
Max sewing speed
2000 r.p.m. 500 punti/min 500 punti/min 500 punti/min
Max stitch lenght
5 mm 0-12 mm 0-12 mm 0-8 mm
Lifting amount of presser foot
8 mm
Needle system
328-214 x 1 328-214 x 1 328-214 x 2
Voltage
single-phase V 230 - 50/60 Hz 220V 50/60 Hz 220V 50/60 Hz
Dimensions
105x55x122 cm
Weight
85 kg 100 kg 100 kg 130 kg
